TekTone IR320B Nurse Call Dual Bed Station For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

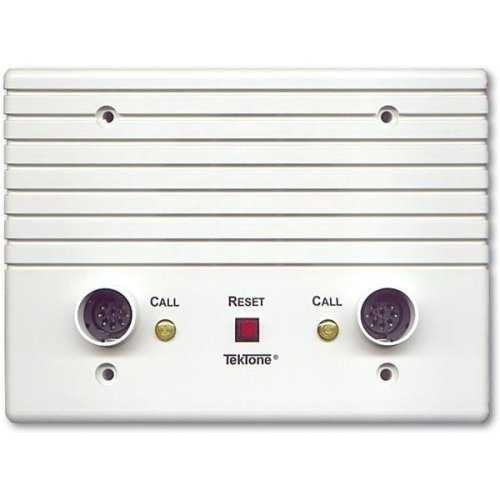

TekTone IR320B Nurse Call Dual Bed Station:
$231.94

Brand New Unit
The IR320B Dual Patient Station provides reliable twoway, hands-free communication between patient and nurse, and provides for programmable privacy, paging and patient priority from the master station. Calling the nurse is accomplished by pressing the call cord button or the area indicated nurse on the pillow speaker. Solid state LEDs on the panel indicate the call has been placed and the intercom is in use.

If the pillow speaker or call cord is accidentally removed from its receptacle, the nurse master station registers a non-cancellable cord out call. The call may be reset only by returning the call cord or pillow speaker to its receptacle.

---

---

---

TekTone IR320B Dual Patient Station

$175.00

---

TekTone IR320B Nurse Call Dual Bed Station

$231.94

---

Tektone IR320B Dual 8-Pin Din Patient Station

$329.00

---
