Tektronix MSO24 200MHz 4CH Mixed Signal Oscilloscope Tested Verified For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Tektronix MSO24 200MHz 4CH Mixed Signal Oscilloscope Tested Verified:
$2699.00

TEKTRONIX MSO24 2 SERIES MIXED SIGNAL OSCILLOSCOPE — 200 MHz — 4 CHANNEL

CONDITION: USED — TESTED & VERIFIED WORKING

For sale is a genuine Tektronix MSO24 2 Series Mixed Signal Oscilloscope with the 200 MHz bandwidth upgrade installed and activated.

This professional 4-channel digital oscilloscope has been tested and verified working. Both power-on and extended internal self-tests report PASSED.

VERIFIED INSTALLED OPTIONS

SUP2-BW70T200-4 — Bandwidth Upgrade from 70 MHz to 200 MHz on MSO24
2-FW — Base Firmware Application for 2 Series MSO, Node Locked
Firmware Version: 1.42.6.324

MANUFACTURER Tektronix

Model: MSO24

Series: 2 Series MSO

Analog Channels: 4

Installed Analog Bandwidth: 200 MHz

Maximum Sample Rate: 2.5 GS/s with half the channels active

Sample Rate: 1.25 GS/s with all four channels active

Maximum Record Length: 10 Mpoints per channel

Display: 10.1-inch WXGA Capacitive Touchscreen

Display Resolution: 1280 × 800

Vertical Resolution: 8-bit ADC

Input Impedance: 1 MΩ

Analog Input Connectors: BNC

USB Host and Device Interfaces

Ethernet / LAN Connectivity

External Trigger / Auxiliary Input

Integrated Waveform Mathematics and FFT

Automated Waveform Measurements

Compact Portable Design with Integrated Carry Handle

TESTING & VERIFICATION RESULTS

The instrument has been tested, and the onboard diagnostic screens confirm the following:

POWER-ON SELF-TEST: PASSED

EXTENDED SELF-TEST RESULTS:

System: PASSED
Acquisition Memory: PASSED
Acquisition System: PASSED
Internal Calibration Sources: PASSED
Analog Signal Path: PASSED
AFG: PASSED

All displayed self-test categories report passing.

Additional instrument information:

Total Operating Time: 4,589 hours
Recorded Power-Ups: 38
200 MHz Bandwidth License: Installed
Touchscreen: Functional
Instrument boots successfully and displays the acquisition interface.

The AFG self-test result does not independently establish that optional AFG generation features are licensed.

IMPORTANT CALIBRATION INFORMATION

The instrument passes its internal diagnostic tests. No current external traceable calibration certificate is included.

The internal self-test results should not be interpreted as certification of measurement accuracy against all manufacturer specifications.

COSMETIC CONDITION

Used professional laboratory equipment
Normal cosmetic wear, surface marks, and handling wear
Display and front controls present
All four analog BNC inputs present
Integrated carrying handle and stand included
Please review all photographs for exact physical condition

INCLUDED WITH PURCHASE

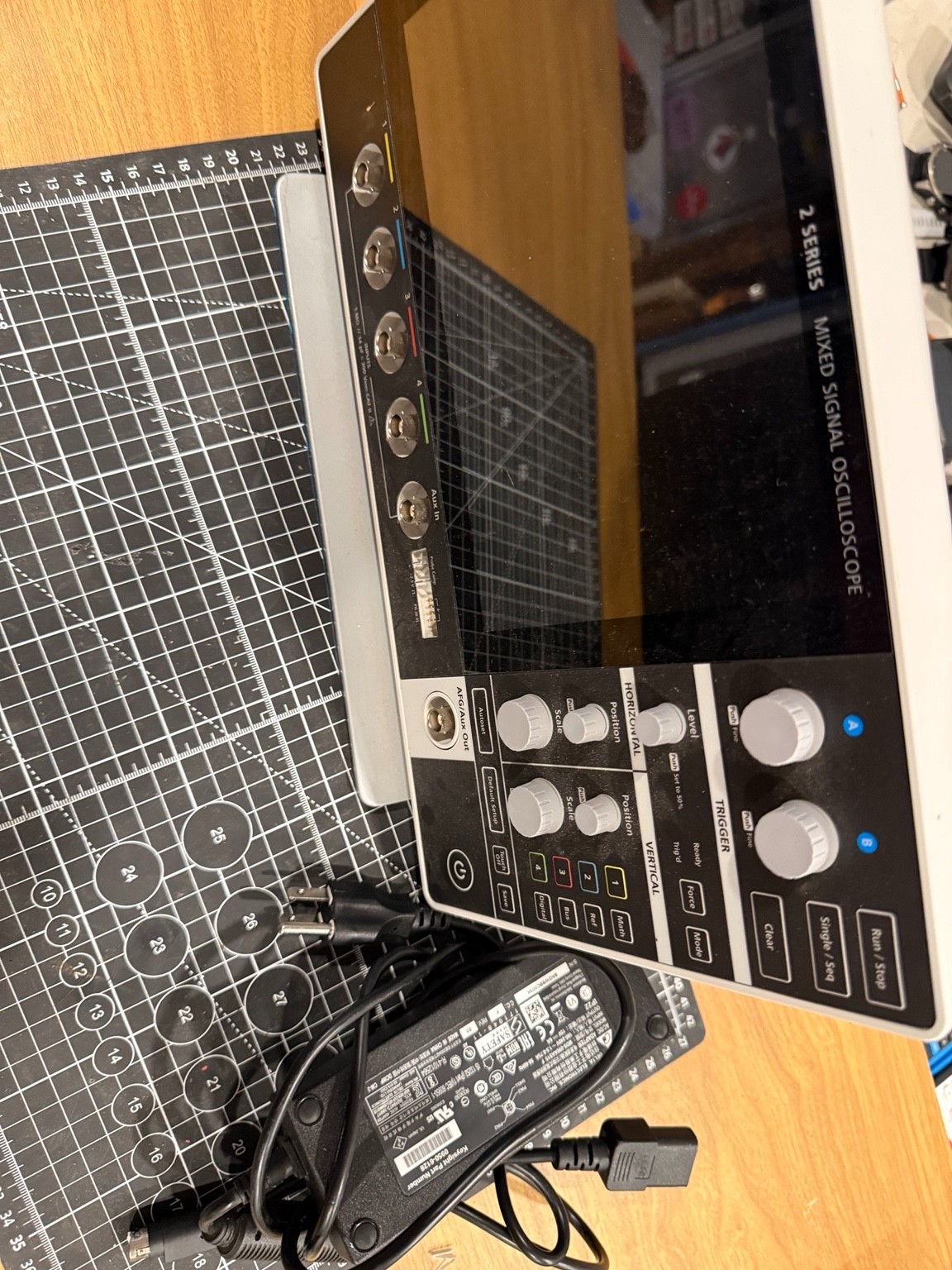

(1) Tektronix MSO24 4-Channel Mixed Signal Oscilloscope
(1) External AC/DC Power Adapter
(1) AC Power Cord
(1) Integrated Carry Handle and Stand Assembly

NOT INCLUDED

Oscilloscope probes
Digital logic test cables
Calibration certificate
External software licenses or accessories not shown

RETURN POLICY — 10 DAYS

Seller offers voluntary return requests within 10 calendar days of confirmed delivery, provided the instrument is returned in the same condition received.

Buyer is responsible for return shipping for discretionary returns.

All returns are subject to applicable return policies and buyer protections.

SHIPPING

The oscilloscope will be carefully packaged with protective cushioning around the touchscreen, front-panel BNC inputs, control knobs, and enclosure.

The external power adapter and associated cord will be secured separately to avoid damage during transit.

Shipping insurance and signature confirmation are recommended.

TEKTRONIX MSO24 — 200 MHz — 4 CHANNEL — TESTED & VERIFIED WORKING — INTERNAL SELF-TESTS PASSED
