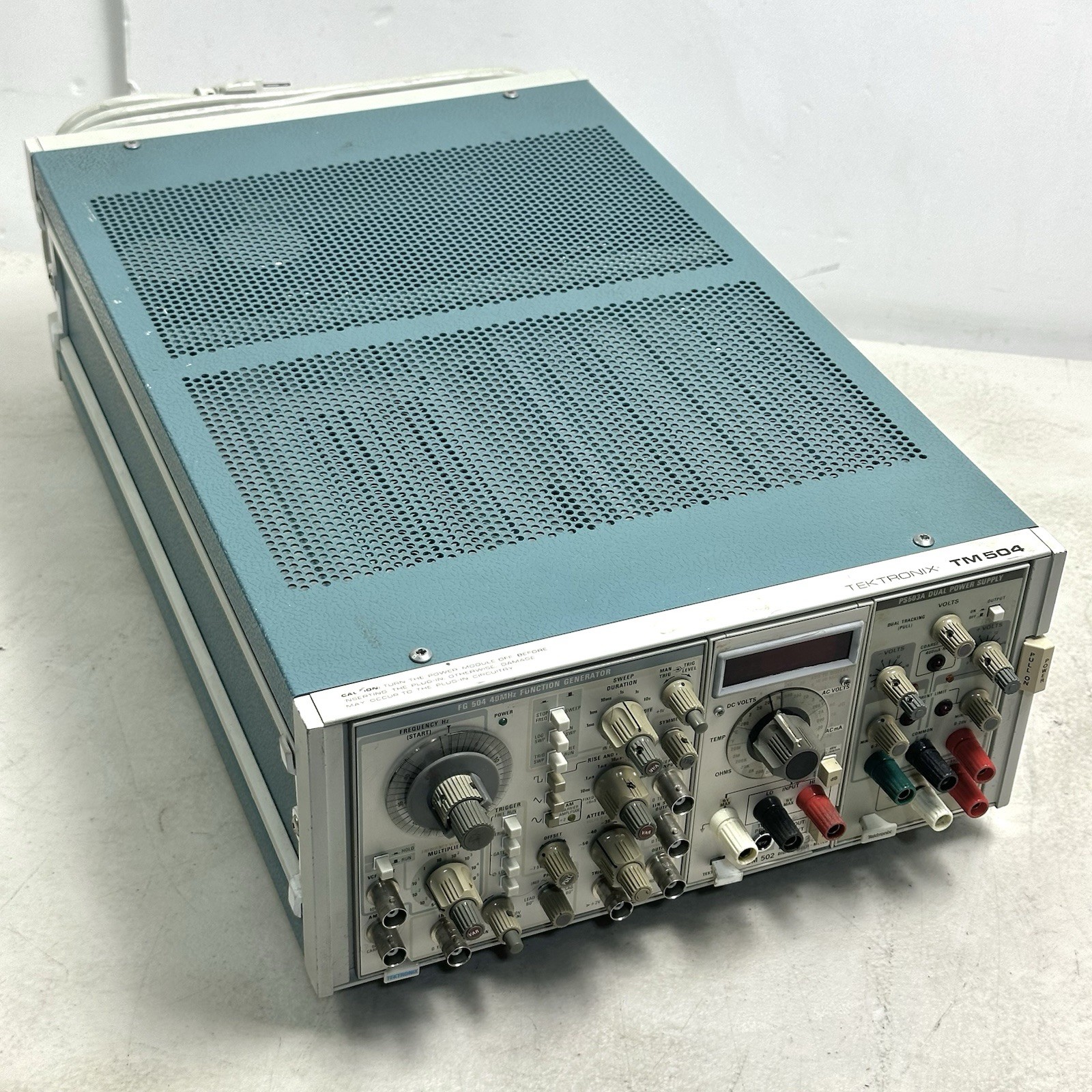

Tektronix TM504 W/ FG504 Generator, DM502 Auto DMM, PS503A Supply TESTED For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Tektronix TM504 W/ FG504 Generator, DM502 Auto DMM, PS503A Supply TESTED:
$299.97

Tektronix TM504 Test Equipment System FG504 40MHz Generator DM502 DMM PS503A Supply

I will ship it out the very same day you order FOR FREE via USPS Mail to make sure you get it FAST

If you have any issues with this item at all please just me a message immediately, before leaving response, and I promise to solve it whether that means a full refund or a replacement. Whatever the case, I’m here to make sure your experience ordering from me goes well.

TEKTRONIX TM504 MODULAR TEST EQUIPMENT SYSTEM — TESTED WORKING

Offered for sale is a Tektronix TM504 modular test equipment mainframe loaded with three plug-in instruments:

* Tektronix FG504 40 MHz Function Generator

* Tektronix DM502 Digital Multimeter

* Tektronix PS503A Triple Power Supply

The system has been tested. This vintage Tektronix TM500-series instrumentation setup is ideal for electronics laboratories, engineering benches, repair facilities, electronic troubleshooting, circuit development, and industrial test applications.

SPECIFICATIONS

MAINFRAME — TEKTRONIX TM504

* Manufacturer: Tektronix

* Model: TM504

* Product family: TM500 modular test equipment

* Function: Modular instrument mainframe and power module

* Capacity: Four plug-in compartments

* Application: Powers and interconnects compatible TM500-series instruments

* Input power: AC mains; verify rear-panel nameplate for exact voltage and frequency

FUNCTION GENERATOR — TEKTRONIX FG504

* Instrument type: Function generator

* Maximum frequency: 40 MHz

* Sine, triangle, and square wave frequency range: Approximately 0.001 Hz to 40 MHz

* Ramp, pulse, and asymmetric waveform range: Approximately 0.001 Hz to 4 MHz

* Output amplitude: Up to 30 V peak-to-peak open circuit; up to 15 V peak-to-peak into 50 ohms

* Output attenuation: Up to 50 dB

* Features: Frequency sweep, variable duty cycle, DC offset, and waveform generation

* Application: Signal generation, circuit testing, troubleshooting, and electronics development

DIGITAL MULTIMETER — TEKTRONIX DM502

* Instrument type: Digital multimeter

* Display: 3½-digit digital readout

* Measurements: AC voltage, DC voltage, AC current, DC current, resistance, and temperature with a compatible probe

* Additional functions: Decibel measurements

* Application: Electronic component testing, voltage measurements, current measurements, and troubleshooting

POWER SUPPLY — TEKTRONIX PS503A

* Instrument type: Triple-output modular power supply

* Outputs: Three DC outputs

* Main variable output: 0–20 V, up to 1 A

* Additional output: +5 V, up to 1 A

* Application: Circuit development, electronic component testing, and powering low-voltage electronic devices

* Output specifications and condition should be verified against the module’s nameplate and applicable manual

TESTED WORKING

This equipment is being sold as a tested system. Please review all photographs for the exact condition, front-panel displays, controls, connectors, and included components.

Testing does not imply recent factory calibration or certification to published accuracy specifications. No calibration certificate is included unless explicitly shown.

FITMENT & COMPATIBILITY

The TM504 is designed for compatible Tektronix TM500-series plug-in instruments. The included FG504, DM502, and PS503A modules provide a combination of signal generation, electrical measurement, and DC power for compatible electronics test applications.

Suitable for:

* Electronics repair and troubleshooting

* Engineering and development laboratories

* Circuit prototyping and testing

* Analog and digital electronics

* Component testing

* Educational electronics labs

* Industrial electronics maintenance

* Vintage test equipment collections

* Compatible Tektronix TM500-series modular test systems

Compatibility note: Tektronix plug-in modules from different instrument families may look mechanically similar but are not necessarily electrically compatible. Verify the module family and connector keying before substituting other plug-ins.

INCLUDED IN THIS LISTING

1. Tektronix TM504 mainframe

2. Tektronix FG504 function generator

3. Tektronix DM502 digital multimeter

4. Tektronix PS503A triple power supply

Only the equipment and accessories shown in the photographs are included. Test leads, probes, cables, manuals, and other accessories are not included unless pictured or specifically stated.

CONDITION

Used vintage electronic test equipment. Tested and working as described. Cosmetic wear consistent with age, previous handling, and use may be present. Please examine all photographs carefully for the actual condition of the unit.
