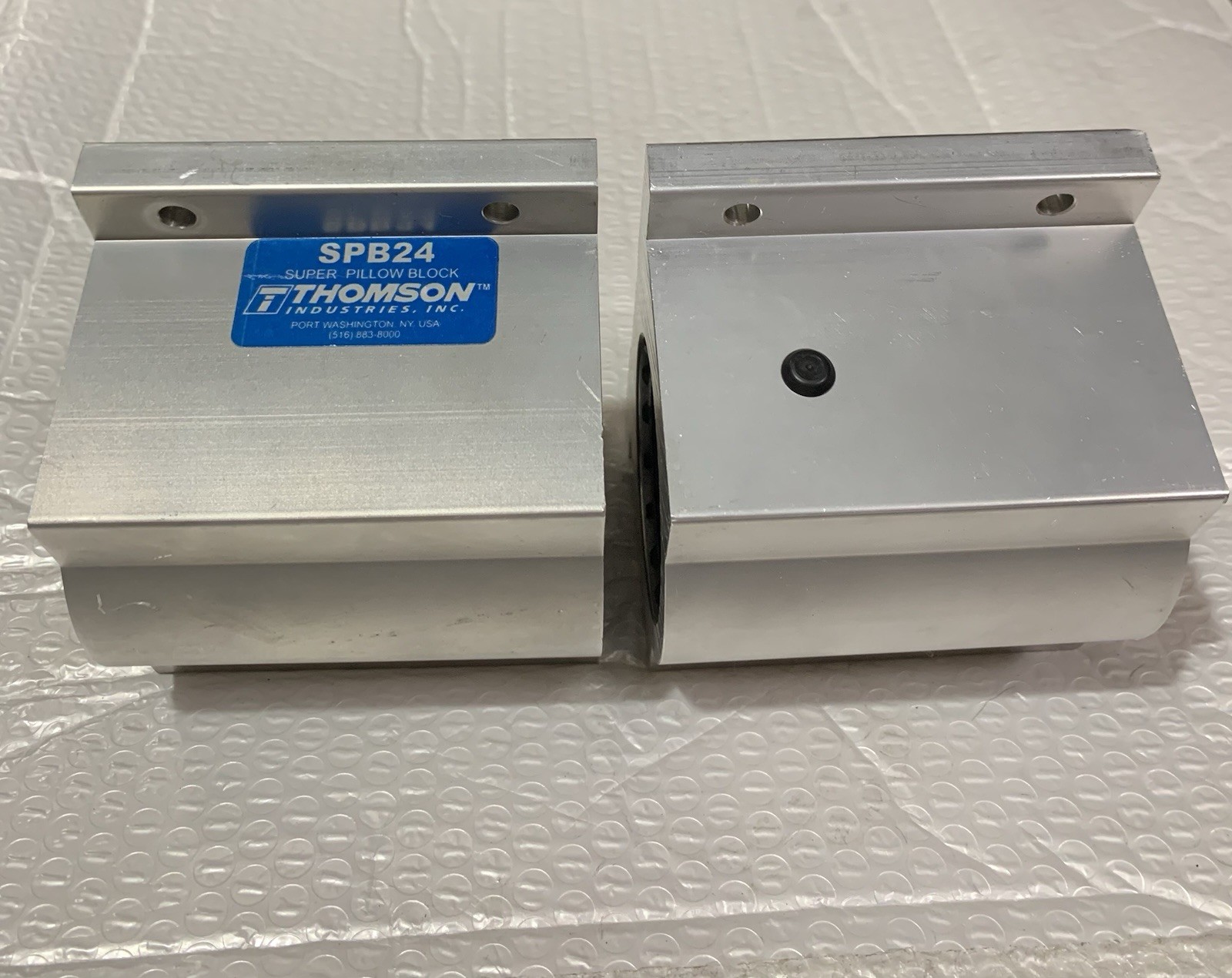

Thomson SPB24 Super Pillow Block closed-type, self-aligning, 1.5” bore diameter:
$72.00
All are in New Open Box, never used condition. Some have their original box, some just have their original paper wrap, and a couple don’t have wrap or box but in good new open box condition.
Thomson Linear SPB24 Super Ball Bushing Pillow Block is a high-performance closed-type, self-aligning linear ball bushing bearing housing designed for high-performance. Built around a 1.5-inch nominal bore diameter.
Application: Designed for end-supported shafting in factory automation, high-speed industrial machinery, and material handling.
•Part Number: SPB24
• Shaft/Bore Diameter: 1.5000 in
• Overall Length: 4.000 in
• Overall Width: 4.750 in
• Overall Height: 3.25 in
• Housing Style: Single, Closed Type
• Adjustment Type: Fixed / Non- Adjustable
• Mounting Hole Center-to-Center Length: 2.5 in
• Mounting Hole Center-to-Center Width: 4.125 in
• Mounting Surface to Shaft Center Height: 1.75 in
Performance & Materials
• Dynamic Load Capacity: 2,000 lbf
• Steady State Speed: 10 fps
• Maximum Operating Temperature: 185 °F (85 °C)
• Housing Material: Aluminum Alloy
• Outer Sleeve / Housing Style: Wear-Resistant Polymer
• Features: Self-aligning design up to ±0.5 degrees to minimize friction and ensure smooth entry and exit of the internal ball bearings.
Thomson SPB24 Super Pillow Block closed-type, self-aligning, 1.5” bore diameter
$72.00
Thomson SPB-24 (SPB 24) Super Ball Bushing Linear Bearing Pillow Block
$149.99
NEW THOMSON SPB24 SUPER PILLOW BLOCK 1.5"
$250.00
