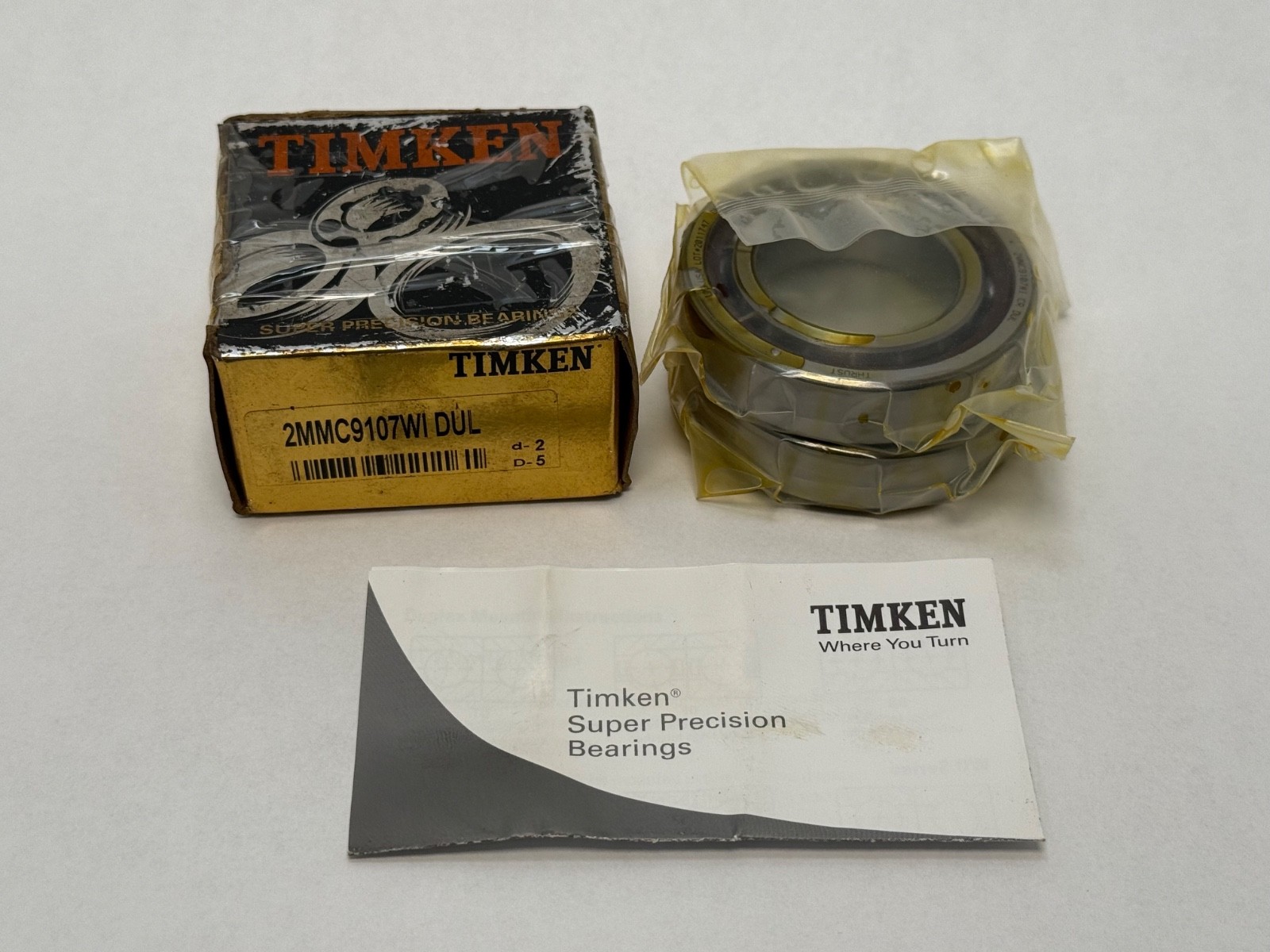

Timken 2MMC9107WI DUL Hybrid Ceramic Bearing 35x62x14mm 7007CD/HCP4ADGA 2 Pcs

What this part is:

Timken Fafnir 2MMC9107WI DUL hybrid ceramic super-precision angular contact ball bearings, a factory-matched universally ground duplex pair with light preload. Unit Quantity: 2 Pcs. Rolling Elements: silicon nitride ceramic balls in steel rings.

Decoding the designation:

2MM — Fafnir super-precision spindle bearing series, 15° contact angle.

C — hybrid ceramic ball complement.

9107 — 9100WI series, bore code 07, 35 mm bore, ISO 7007 envelope.

WI — Fafnir spindle bearing series.

CR — phenolic outer-ring land-riding cage.

DU — duplex, universally ground.

L — light preload.

Specifications:

Contact Angle: 15°. Preload: Light. Precision Class: ABEC 7/9 (ISO P4S). Cage Material: Phenolic (Timken MBR). Cage Type: Outer-ring land-riding. Closure Type: Open. Series: 9100WI. Dynamic Load Rating (C1): 21,200 N (4,760 lbf) per bearing. Dynamic Load Rating (C1 ISO, per row): 19,300 N (4,340 lbf). Static Load Rating (C0): 12,190 N (2,730 lbf) per bearing. Limiting Speed: 27,100 rpm grease; 54,240 rpm oil. Timken World Part Number: C7007C-T-P4S-DUL. GTIN: 087796221161.

Dimensions and mounting:

Bore Diameter: 35 mm. Outside Diameter: 62 mm (2.441 in). Width: 14 mm (0.551 in) per bearing. Total Width: 28 mm (1.102 in) for the duplex set. Shaft Backing Shoulder Diameter: 40.6 mm (1.600 in). Housing Backing Shoulder Diameter: 56.6 mm (2.230 in). Maximum Fillet Radius on the mating shaft: 1 mm (0.039 in). Outer Ring To-Clear Radius: 1 mm (0.039 in). Mounting Arrangement: universally ground, mountable DB, DF or DT.

Compatibility and replacement:

Cross-references: SKF 7007 CD/HCP4ADGA; FAG HCB7007-C-T-P4S-DUL; ISO world part number C7007C-T-P4S-DUL. Related Timken parts: 2MM9107WI DUL (steel balls, lower speed rating); 3MMC9107WI DUL (25° contact angle); 2MMC9107WI DUM and DUH (medium and heavy preload).

Frequently asked questions:What are the dimensions of the Timken 2MMC9107WI DUL?

Each bearing is 35 mm bore, 62 mm outside diameter and 14 mm wide; the duplex set stacks to 28 mm.

What does the Timken 2MMC9107WI DUL consist of?

One factory-matched pair of universally ground hybrid ceramic angular contact bearings with light preload and silicon nitride balls. The original carton is marked 2MMC9107WI DUL with grade marks d-2 and D-5, lot 2011747.

What are the load and speed ratings of the Timken 2MMC9107WI DUL?

Dynamic C1: 21,200 N per bearing. Static C0: 12,190 N per bearing. Limiting speed: 27,100 rpm grease and 54,240 rpm oil.
