UCP205-16 1" Pillow Block Bearing 2-Bolt Solid Base Cast Iron 10 Pack:
$76.25

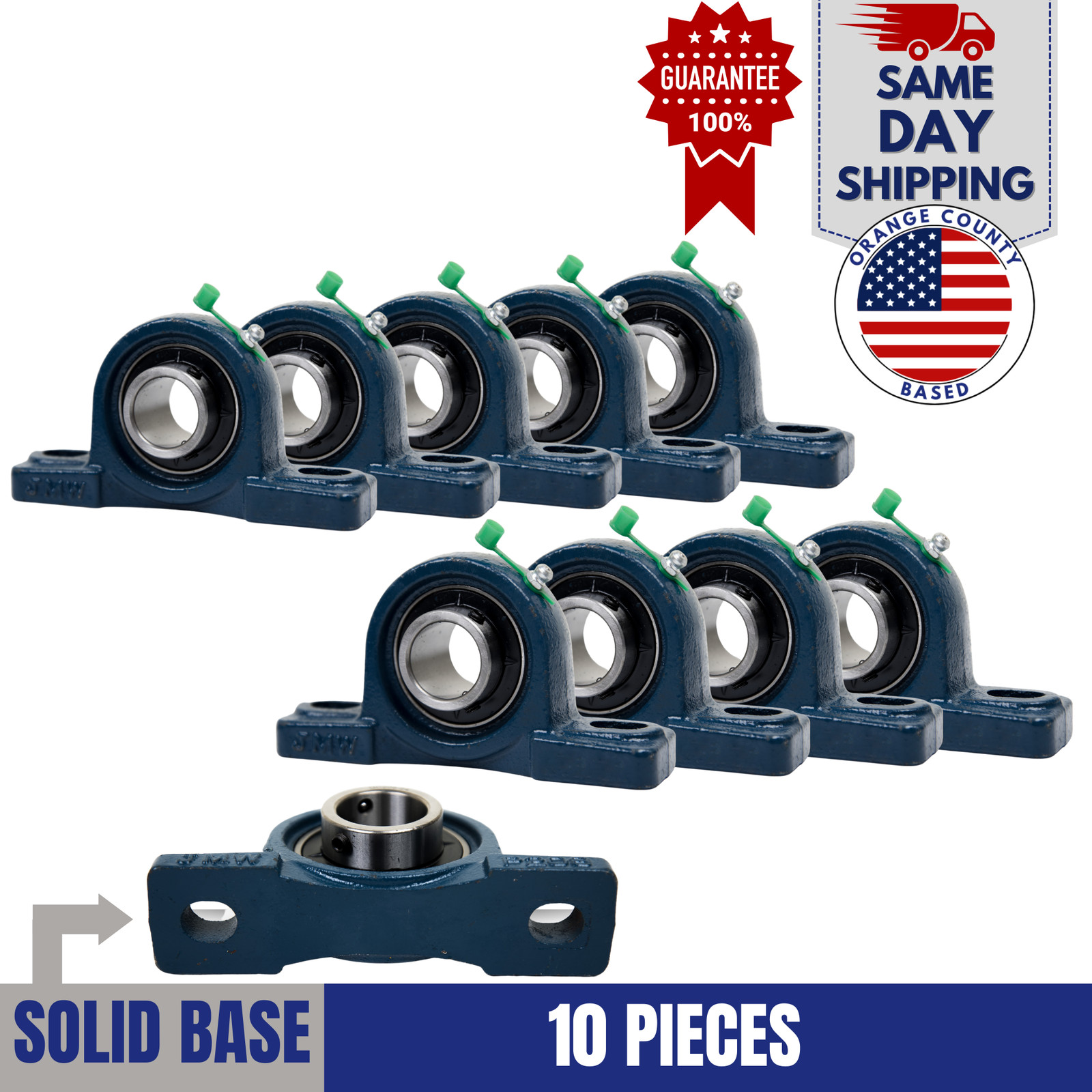

UCP205-16 1" Pillow Block Bearing 2-Bolt Solid Base Cast Iron 10 Pack

Bore Size & Mounting: The UCP205-16 pillow block bearing features a 1" bore with a two-bolt cast iron housing for secure mounting. Verify shaft diameter, bolt-hole spacing, and housing dimensions before ordering to ensure proper fit.
Solid-Base Cast Iron Housing: Manufactured with a solid base without hollow cavities or fillers, helping reduce areas where dirt, debris, and moisture can collect. The rigid cast iron housing provides a durable mounting base and is easier to keep clean than hollow-base designs.
Self-Aligning Insert Bearing: Features a spherical outer bearing surface that allows the insert to self-align within the housing, helping accommodate minor shaft misalignment and support smoother operation and more even load distribution.
Pre-Lubricated & Greaseable: Bearing comes pre-lubricated and ready for installation. An integrated grease fitting allows periodic re-lubrication as part of routine maintenance to help maintain bearing performance.
AISI 52100 Chrome Steel Bearing: The mounted bearing insert is manufactured from AISI 52100 chrome steel for strength, hardness, and wear resistance. Suitable for conveyors, agricultural equipment, material handling systems, and general industrial machinery.

Style:2 Bolts

Material: Cast Iron

Bore Size:1 Inch

Static Load Rating:7.85 kN/1800 lbs

Dynamic Load Rating:14 kN/3100 lbs

Max RPM:3400

Quantity Per Order:

Self Alignment Feature:If the bearing is crooked for example when you lay it on a flat table, it is not flat. Please don't worry. This is our self-alignment feature. These bearing are meant to have some play in them. When y

Product Description:

Alternative Part Numbers:

AMI: UCP 205-16,Browning: VPS-216,Dodge: P2B-SC-016,Fafnir: RASC-1,Fafnir: YAS-1,Link-Belt: P3-U216N,Link-Belt: P3-Y216N,NSK: USP205-16S,NTN: UCP205-016T,Peer: FHSP205-16G,RHP: NP-1,Sealmaster: NP-16
