USED- Automation Direct LR-4050 Line Load Drive Reactor 460V 3PH 65A 50HP 3% Imp For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

USED- Automation Direct LR-4050 Line Load Drive Reactor 460V 3PH 65A 50HP 3% Imp:
$195.00

Item: AutomationDirect LR Series Line / Load Reactor

Model / Part Number: LR-4050

Condition: Used / Working Take-Off

Overview & Specifications

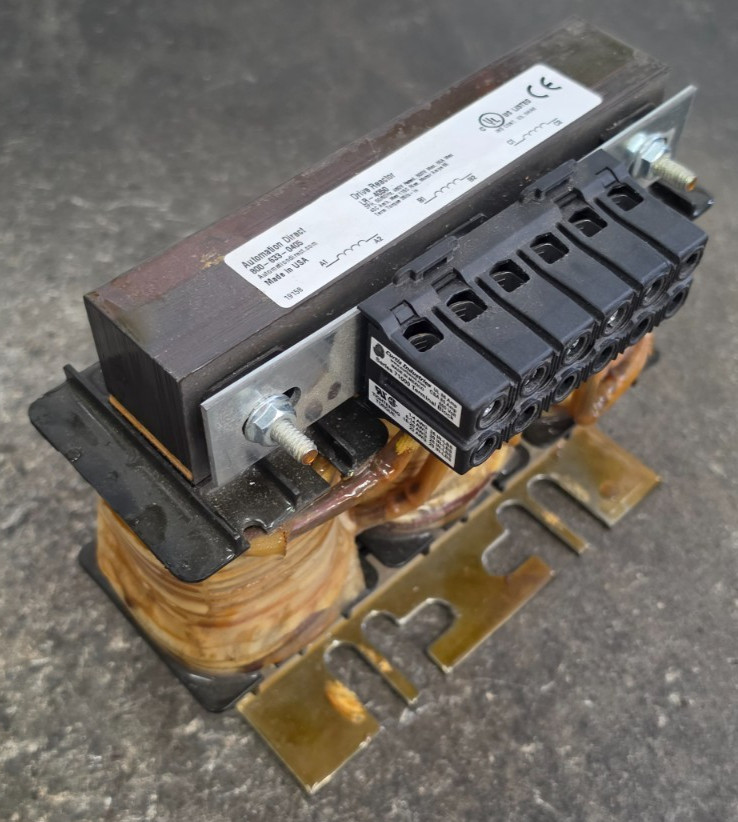

Up for sale is an AutomationDirect LR-4050 line/load reactor removed from working equipment. It is designed for use on either the input or output side of 3-phase AC variable frequency drives (VFDs) to reduce harmonic distortion, absorb voltage spikes, and extend drive life.

Manufacturer: AutomationDirect
Part Number: LR-4050
Rated Voltage: 460 VAC (600 VAC Max)
Phase: 3-Phase, 50/60 Hz
Current Rating: 65 Amps
Horsepower Rating: 50 HP @ 460 VAC
Impedance: 3%
Inductance: 0.295 mH
Enclosure Style: Open Frame / Panel Mount
Weight: Approx. 24–25 lbs

Condition Notes

This unit is a clean take-off from functional equipment. It shows minor cosmetic signs of installation/handling (such as light dust or mounting bracket marks), but has no broken terminals or physical damage. Please inspect all high-resolution photos for exact physical condition.

FREE SHIPPING!!!!Item is sold AS-IS, No Warranty, No Returns.
