V-156-1C25 Limit Micro Switch Long Straight Hinge Roller Momentary SPDT 10-50PCS For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

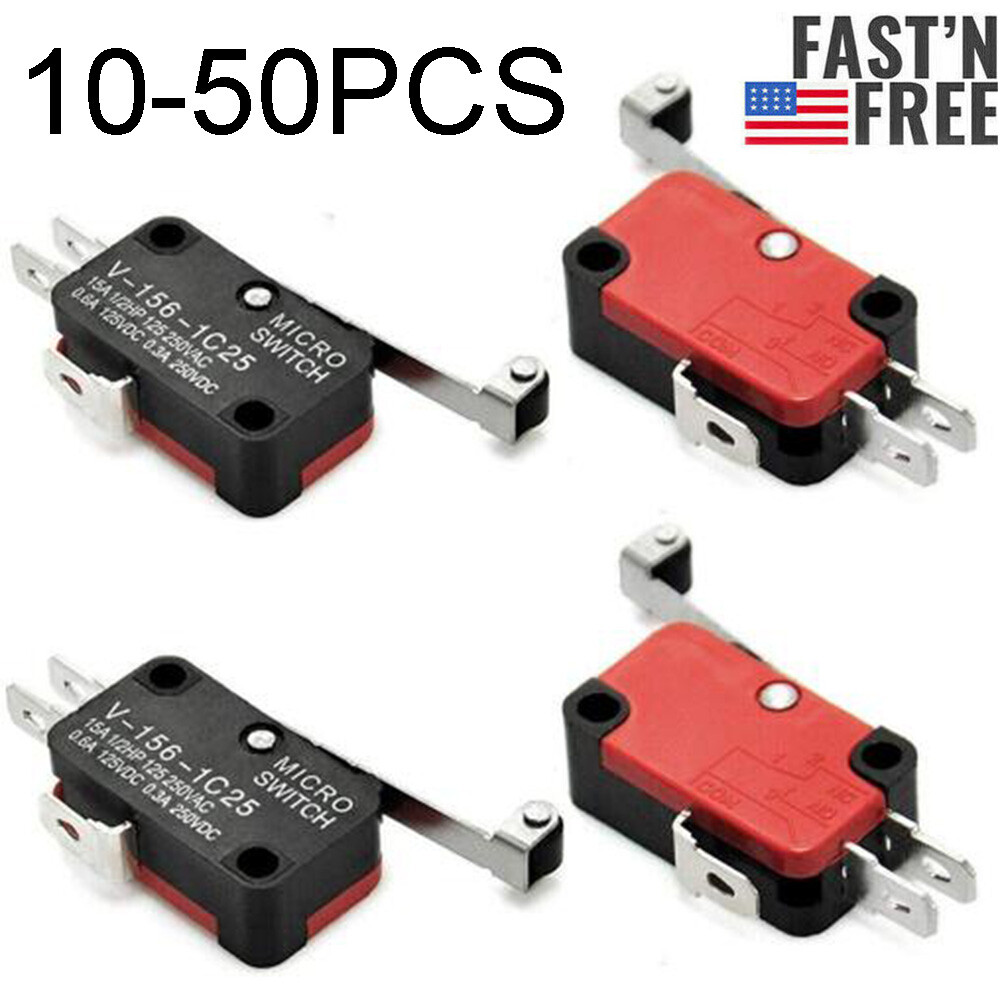

V-156-1C25 Limit Micro Switch Long Straight Hinge Roller Momentary SPDT 10-50PCS:
$9.79

Product + Metal

Color：Black + Red

Length：approx. 30mm

Width：approx. 16mm

Height：approx. 12mm

Work Current：15A

Work Voltage：250V

Work Model：Self precision and long service life.

Widely used in electronic products,instrument measuring appliance and domestic electric appliances.

Package included: As Your Choice

---

---

---

V-156-1C25 Micro Limit Switch Long Hinge Roller - 2 Pack

$9.45

---

V-156-1C25 Limit Micro Switch Long Straight Hinge Roller Momentary SPDT 10-50PCS

$13.99

---

V-156-1C25 Micro Limit Switch Long Hinge Roller - 12 Pack

$17.85

---
