10PCS V-156-1C25 Lead Limit Switch SPDT Long Straight Hinge Roller Button Red For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

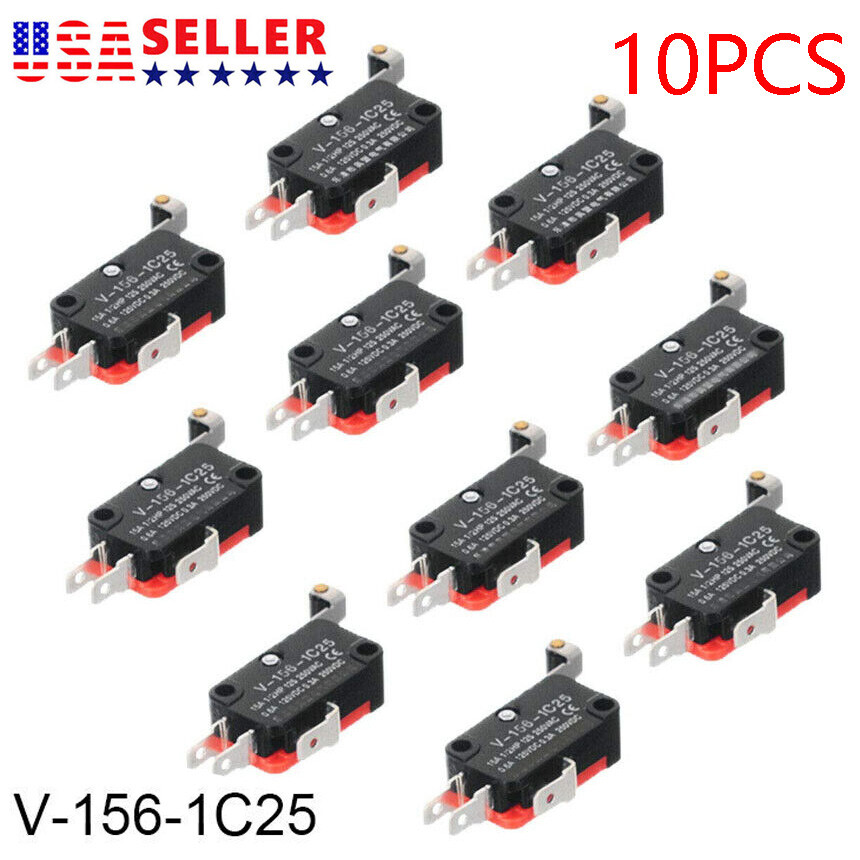

10PCS V-156-1C25 Lead Limit Switch SPDT Long Straight Hinge Roller Button Red:
$9.99

Product Description

Model：V-156-1C25

Materia：Plastic + Metal

Color：Black + Red

Length：approx. 30mm

Width：approx. 16mm

Height：approx. 12mm

Work Current：15A

Work Voltage：250V

Work Model：Self Reset

Feature

High precision and long service life.

Widely used in electronic products,instrument measuring appliance and domestic electric appliances.

Package included: 10 x micro switch

On Jun 26, 2024 at 18:48:33 PDT, seller added the following information:

---

---

---

10PCS V-156-1C25 Lead Limit Switch SPDT Long Straight Hinge Roller Button Red

$9.99

---

V-156-1C25 Limit Micro Switch Long Straight Hinge Roller Momentary SPDT 10-50PCS

$9.79

---

10PCS V-156-1C25 V1561C25 Microswitches -New #fb

$58.81

---
