V-156-1C25 Micro Limit Switch Long Hinge Roller - 4 Pack For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

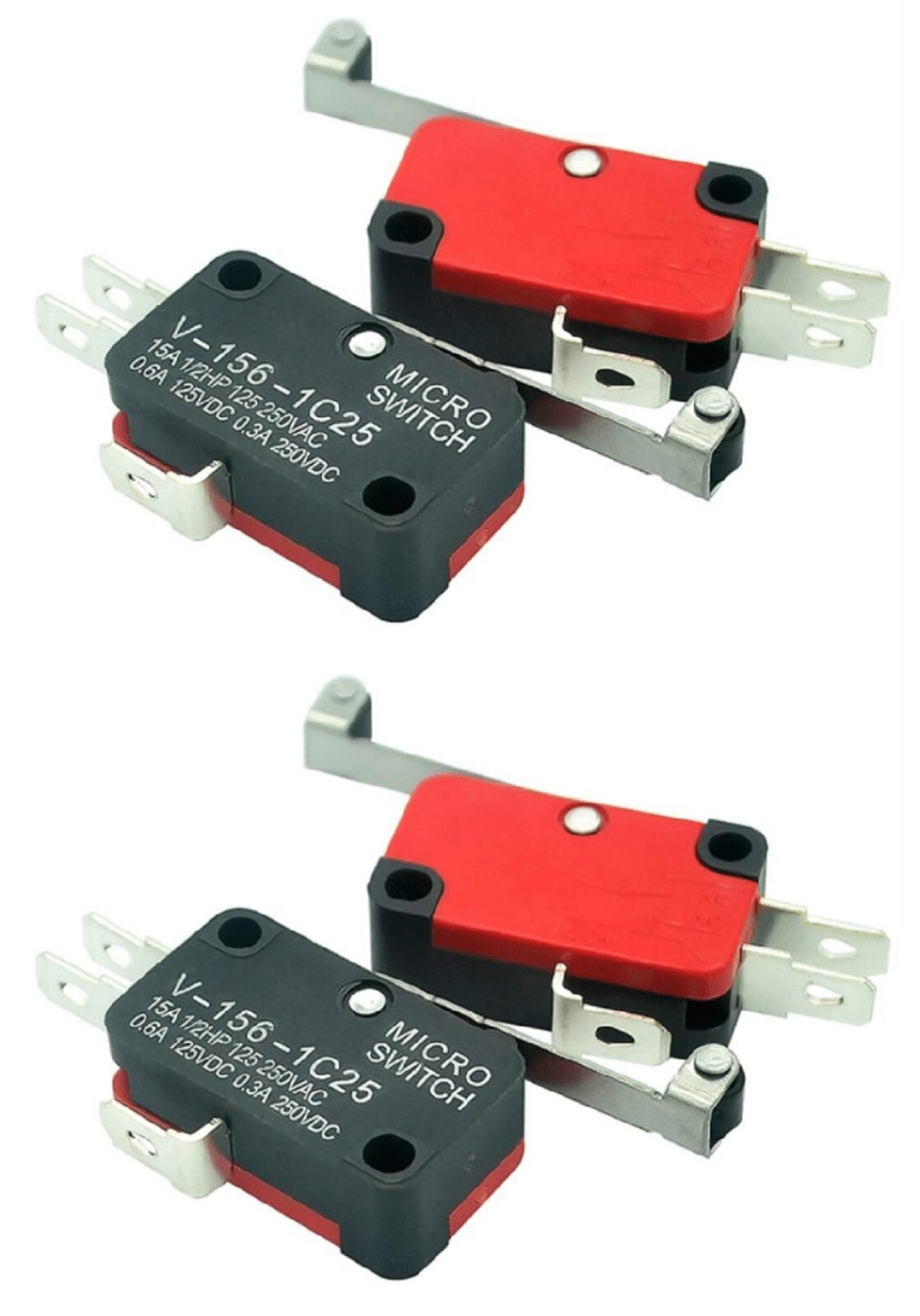

V-156-1C25 Micro Limit Switch Long Hinge Roller - 4 Pack:
$7.19

V-156-1C25 Micro Limit Switch Long Hinge Roller Applicable to AC DC control circuits. Designed to control the movement of a mechanical part.
Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded.
Widely used in electronic equipments, automatic machines, etc. Specification:
Color: red, black and silver
Model: V-156-1C25
Rating: 15A, 1/2Hp, 125/250V AC; 0.6A,125V DC; 0.3A, 250V DC; 0.6A,125V DC; 0.3A, 250V DC

---

---

---

V-156-1C25 Micro Limit Switch Long Hinge Roller - 2 Pack

$9.45

---

V-156-1C25 Micro Limit Switch Long Hinge Roller - 12 Pack

$17.85

---

V-156-1C25 Limit Micro Switch Long Straight Hinge Roller Momentary SPDT 10-50PCS

$13.99

---
