Vintage Simpson Electric Company Model TDS-2 Tachometer Dwell(NSN 4910-788-8549):
$350.00

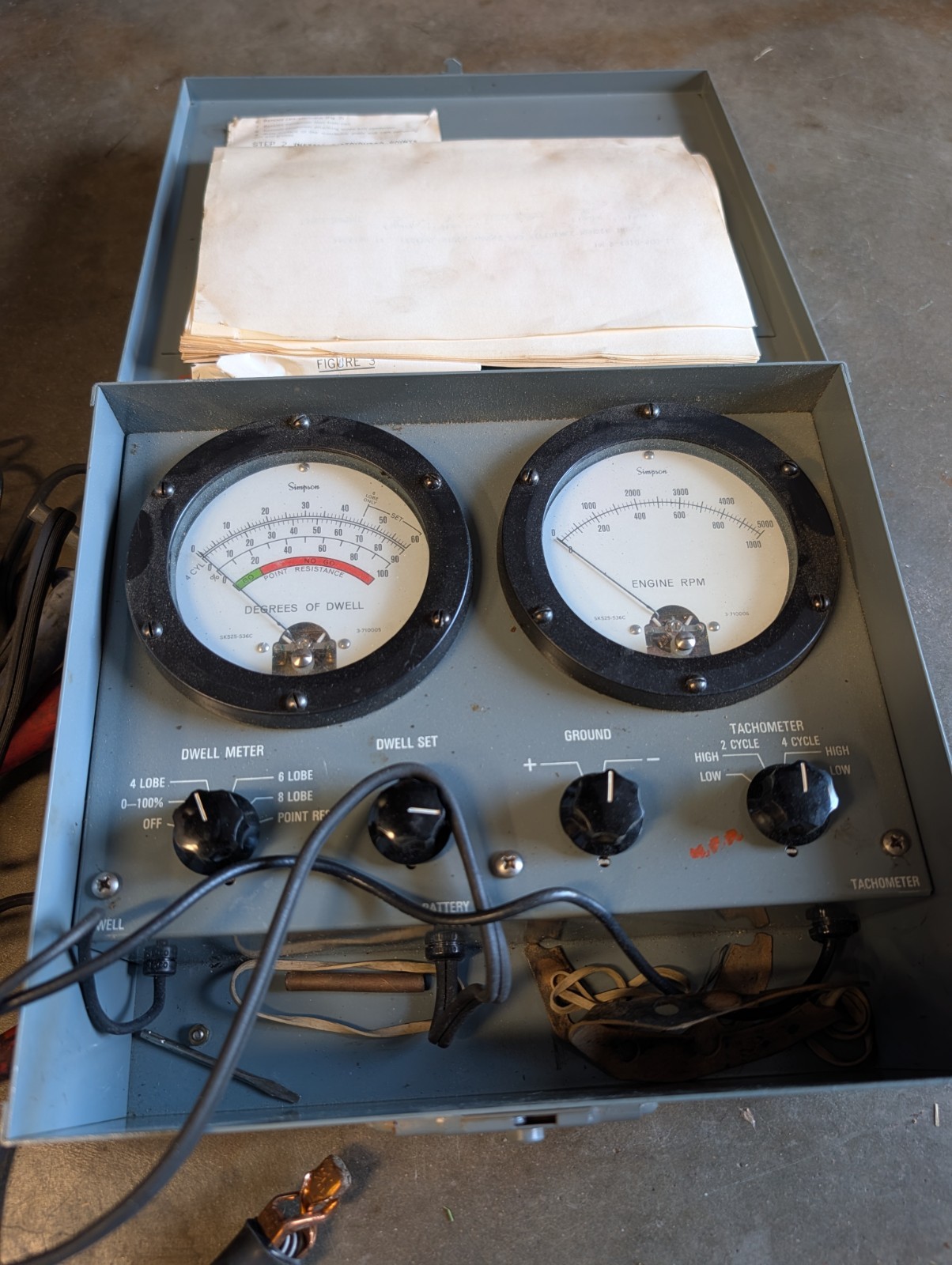

Vintage Simpson Electric Company Model TDS-2 Tachometer and Dwell Test Set (NSN 4910-788-8549)
Up for sale is a vintage military-issue Simpson Electric Company Model TDS-2 Tachometer and Dwell Test Set, housed in its heavy-duty gray metal carrying case and complete with the original Department of the Army Technical Manual (TM 9-4910-500-12). Built to military specifications, this classic diagnostic unit was designed for testing engine RPM, distributor point resistance, and degrees of dwell across 2-cycle and 4-cycle engines.Key Features & Specifications:
Manufacturer: Simpson Electric Company
Model: TDS-2 (4910-788-8549)
Left Gauge (Degrees of Dwell): Simpson meter (SK525-536C / 3-710005) featuring scales for 4 Cyl, 6 Lobe, 8 Lobe, 0–100%, and a Go / No-Go Point Resistance bar.Right Gauge (Engine RPM): Simpson meter (SK525-536C / 3-710006) featuring dual scales (0–1000 RPM Low / 0–5000 RPM High).
Control Panel: Four rotary selector knobs—Dwell Meter (Off, 0–100%, 4 Lobe, 6 Lobe, 8 Lobe, Point Res.), Dwell Set, Ground (+ / -), and Tachometer (2 Cycle / 4 Cycle, High / Low).Included Accessories & Documentation:
Original attached test leads with heavy-duty copper alligator clips (red and black insulated boots) and T-handle adapter.Original Department of the Army Technical Manual (TM 9-4910-500-12): Operator and Organizational Maintenance Manual (Including Repair Parts and Special Tool List), plus additional instruction inserts stored in the lid.
Spare components stored in the lower compartment (metal bracket/strap, small tool, and cylindrical piece).
Condition Report:
Cosmetic Condition: Very clean vintage condition overall. Both Simpson meter faces are crisp and legible with intact glass lenses and resting needles at zero. Control knobs are intact and turn properly. The gray metal case shows light storage wear and features an orange "M.F.P." military preservation/inspection stamp near the tachometer dial. Rubber insulator boots on the alligator clips are intact with typical surface age/rubbing.
Functional Condition: Untested—being sold as-is as a vintage collector
Please review all high-resolution photos closely as they form part of the condition description.
