WATTS 556001 WATTS 556001 LF100XL8 150-210 3/4:
$83.48

Product Description

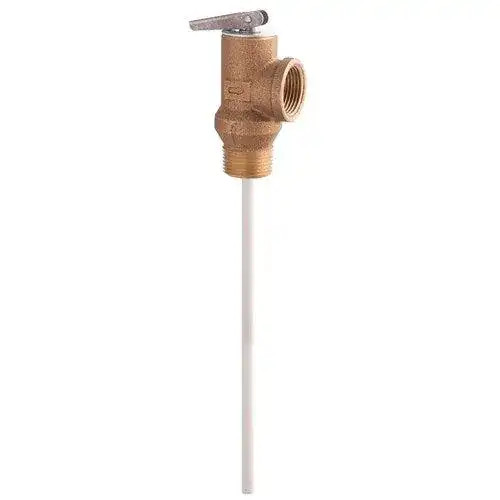

The WATTS 556001 LF100XL8 is a 3/4 inch lead free temperature and pressure relief valve. It is designed for hot water supply tanks and heaters that require automatic temperature and pressure protection. This valve can handle systems with a capacity of up to 105,000 BTU/hr.

• Lead free copper alloy body construction
• Temperature relief set at 210 degrees F
• Pressure relief set at 150 psi

Product Highlights

This valve protects against high temperature and pressure to maintain safe operating conditions in water systems.

Product InformationStandard Information

• Brand: WATTS
• Item Type: Relief Valves

Technical Specifications

• Body Material: Lead Free Copper Silicon Alloy
• Inlet Connection Size: 3/4 IN
• Inlet Connection Type: Male Threaded
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Female Threaded
• Pressure Relief Setting: 150 PSI
• Temperature Relief: 210 degrees F
• Shank Length: 1 1/8 IN

---

---

---
