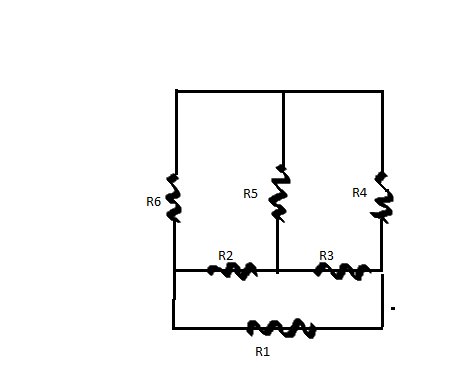

- Series-Paralell.png (6.42 KiB) Viewed 7868 times
Need help figuring out a more simplified version.Im just having trouble figuring out whats parallel and in series
Electronics Forum
Electronics Circuits & Projects discussion forum. Get help with electronics.
Need help simplifying circuit
Moderator: pebe
5 posts
• Page 1 of 1
Need help simplifying circuit
by geryuuu » Tue Feb 25, 2014 3:50 am
[attachment=0]
Need help figuring out a more simplified version.Im just having trouble figuring out whats parallel and in series
Need help figuring out a more simplified version.Im just having trouble figuring out whats parallel and in series
- geryuuu
- Posts: 4
- Joined: Tue Feb 25, 2014 3:46 am
Re: Need help simplifying circuit
by geryuuu » Tue Feb 25, 2014 5:25 pm
I can figure most of it out, I just don't know how to write down R5, I believe it is parallel to both R6 and R4. Not 100% though
- geryuuu
- Posts: 4
- Joined: Tue Feb 25, 2014 3:46 am
Re: Need help simplifying circuit
by pebe » Wed Feb 26, 2014 1:48 pm
If you want to simplify between two nodes, where are they?
- pebe
- Posts: 1058
- Joined: Tue Dec 09, 2003 11:12 pm
- Location: Ellon, Scotland
Re: Need help simplifying circuit
by geryuuu » Fri Feb 28, 2014 5:51 pm
between a node centered between (r5 and r6) and (r5 and r4).
- geryuuu
- Posts: 4
- Joined: Tue Feb 25, 2014 3:46 am
Re: Need help simplifying circuit
by pebe » Sat Mar 01, 2014 5:25 pm
Are not those points on the same top line?
- pebe
- Posts: 1058
- Joined: Tue Dec 09, 2003 11:12 pm
- Location: Ellon, Scotland
