0-100V 150V 200V 300V 0-3A 5A 10A Lab Adjustable DC Bench Power Supply Variable :
$289.99

product description

KPS series products are a high-power digital display program-controlled switching DC regulated power supply newly developed and upgraded by our company. This product is a DC programmable power supply with exquisite appearance, small size, high performance, powerful function and simple operation. It is suitable for testing in aerospace and defense, consumer electronics, computers and peripherals, communications, semiconductors, solar energy and automotive electronics. The product can display voltage and current at the same time. The output voltage and output current are adjusted by the encoder knob, which can be continuously adjusted between 0 and the nominal value. It has high power, large current, fast response, and fast load transient response, Low noise, easy to use and other significant advantages! The stability and ripple coefficient of the power supply are very good. It has various protection circuits such as short-circuit protection, over-voltage protection, over-current protection, over-temperature protection, etc., which can work at full load for a long time and is deeply loved by users.

Features

•Small size, light weight, suitable for work surface use and rack installation;

• Exquisite appearance, flexible operation and convenient use;

•High precision, internal use original chip, stable and reliable performance;

•Using high-gain amplifier circuit design, with good fast load transient response to prevent unwanted voltage offset;

• Using PWM modulation, high efficiency, more power saving;

•Intelligent temperature control fan with low noise

• Built-in OVP over-voltage protection, OCP over-current protection, OPP overload protection, OTP over-temperature protection, complete and reliable protection functions;

• Voltage and current preset, OUT output function

• The product has a short-circuit protection alarm function

• It can be optionally equipped with a host computer communication interface for PC or PLC remote control;

Application field

Electrolytic plating

Product aging test

Production line test

Charging batteries

Electronic device testing

Laboratory research and development test

School teaching experiment

Telecom Power

Product List

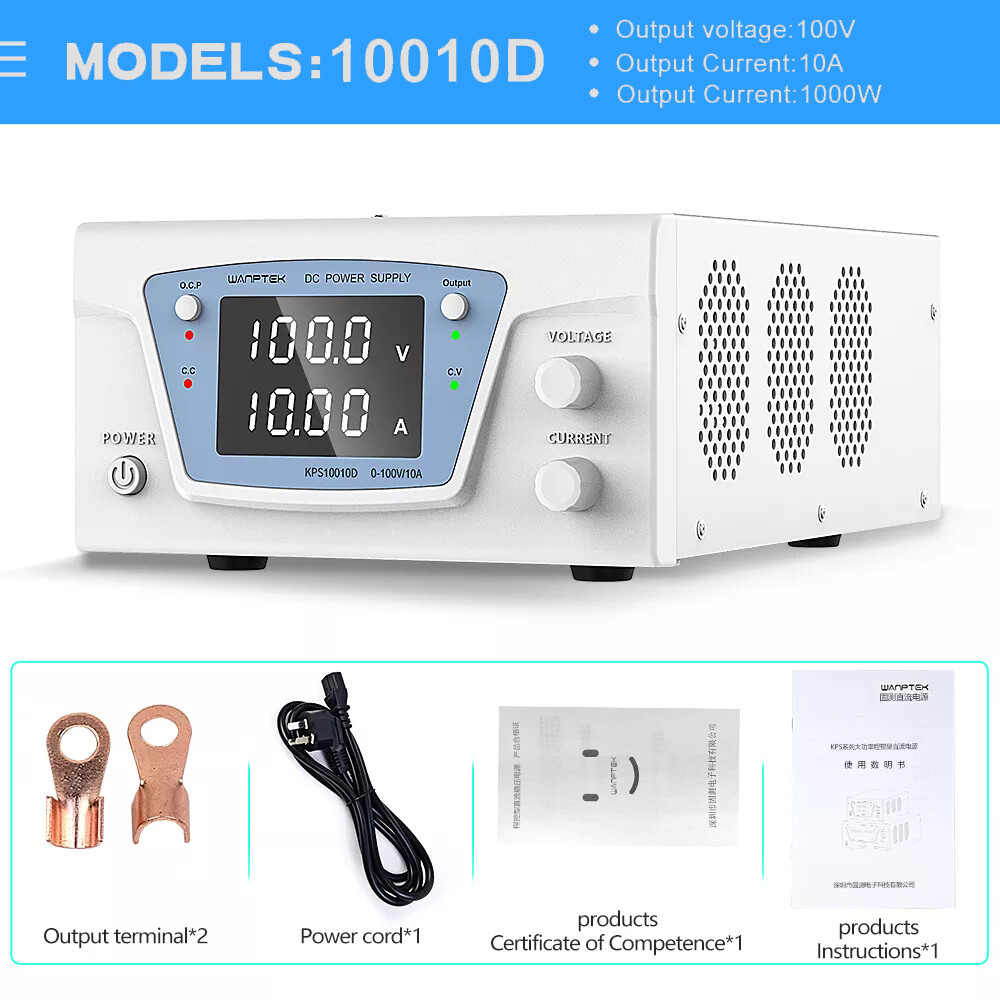

Medium chassis (1200W)Products modelProduct specificationsOutput PowerKPS10010D0～100V 0～10A1000WKPS15003D0～150V 0～3A450WKPS15005D0～150V 0～5A750WKPS2003D0～200V 0～3A600WKPS2005D0～200V 0～5A1000WKPS3003D0～300V 0～3A900WProduct size: 275(L)X200(W)X105(H)mmPacking size: 375(L)X260(W)X175(H)mmNet weight:3Kg，Gross weight:3.6Kg

Product parameter

Operation requirementsInput voltage：AC 110V/220V±10%；50Hz (Can be customized 110V)Operating temperature：0℃～40℃;Relative humidity:<80%RHstorage temperature：-10℃～70℃;Relative humidity:<70%RHoutput voltage0-rated value (see specification table)Output current0-rated value (see specification table)output powersee specification tableSet value of readback valueVoltage0.01VCurrent0.01AHeader display0.4inch white four-digit digital tube displayDisplay accuracy: 0.5%±3 wordsDisplay resolution: voltage 0.01V, current 0.01ARegulated state CVVoltage stability：0.5%±20mVLoad stability：0.5%±20mVRipple voltage：≤0.5%Vp-pSteady flow state CCCurrent stability：0.5%±20mALoad stability：0.5%±20mARipple current：≤0.5%Vp-pTemperature Coefficient：≤100ppm/℃Rise TimeNo load≤15msFully loaded≤30msDynamic response time≤2msAccessibilityOUTPUT output switch, OCP short circuit protection switchProtective functionOVP,OCP,OPP,OTPRandom accessoriesAC power cord X1Operation Manual X1Certificate of Warranty Card X1Wiring copper terminal X2Optional accessoriesOutput power cord (Alligator clip test cord)，Host computer communication function.
