0-100V 150V 200V 300V 0-3A 5A 10A Lab Adjustable DC Bench Power Supply Variable.:
$279.99

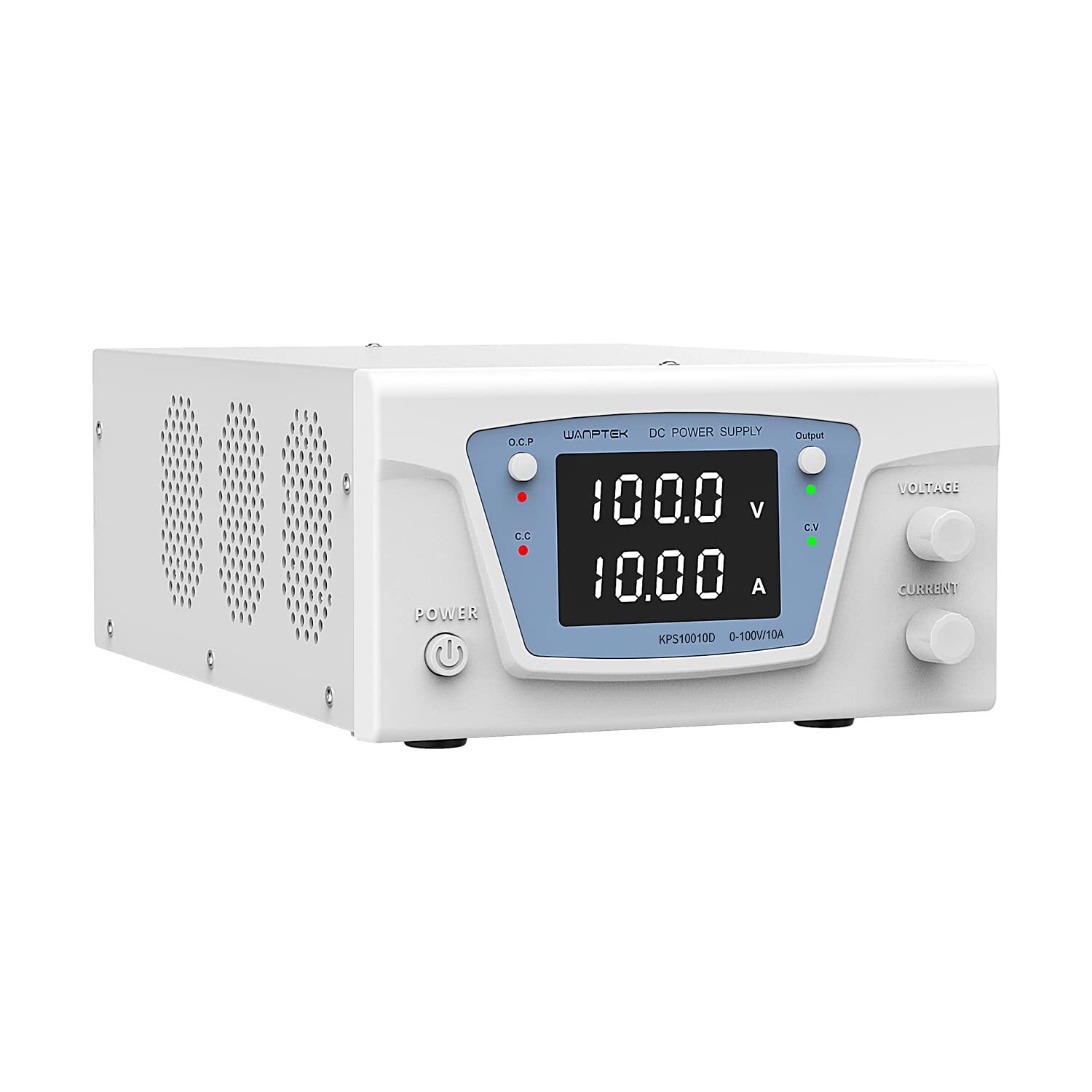

0-100V 150V 200V 300V 0-3A 5A 10A Lab Adjustable DC Bench Power Supply Variable.

Product List

Medium chassis (1200W) Products model Product specifications Output Power KPS10010D 0～100V 0～10A 1000W KPS15003D 0～150V 0～3A 450W KPS15005D 0～150V 0～5A 750W KPS2003D 0～200V 0～3A 600W KPS2005D 0～200V 0～5A 1000W KPS3003D 0～300V 0～3A 900W Product size: 275(L)X200(W)X105(H)mm Packing size: 375(L)X260(W)X175(H)mm Net weight:3Kg，Gross weight:3.6Kg

Operation requirements Input voltage：AC 110V/220V±10%；50Hz (Can be customized 110V) Operating temperature：0℃～40℃;Relative humidity:<80%RH storage temperature：-10℃～70℃;Relative humidity:<70%RH output voltage 0-rated value (see specification table) Output current 0-rated value (see specification table) output power see specification table Set value resolution Voltage0.01V Current0.01A Resolution of readback value Voltage0.01V Current0.01A Header display 0.4inch white four-digit digital tube display Display accuracy: 0.5%±3 words Display resolution: voltage 0.01V, current 0.01A Regulated state CV Voltage stability：0.5%±20mV Load stability：0.5%±20mV Ripple voltage：≤0.5% Vp-p Steady flow state CC Current stability：0.5%±20mA Load stability：0.5%±20mA Ripple current：≤0.5% Vp-p Temperature Coefficient：≤100ppm/℃ Rise Time No load≤15ms Fully loaded≤30ms Dynamic response time ≤2ms Accessibility OUTPUT output switch, OCP short circuit protection switch Protective function OVP,OCP,OPP,OTP Random accessories AC power cord X1 Operation Manual X1 Certificate of Warranty Card X1 Wiring copper terminal X2 Optional accessories Output power cord (Alligator clip test cord)，Host computer communication function.
