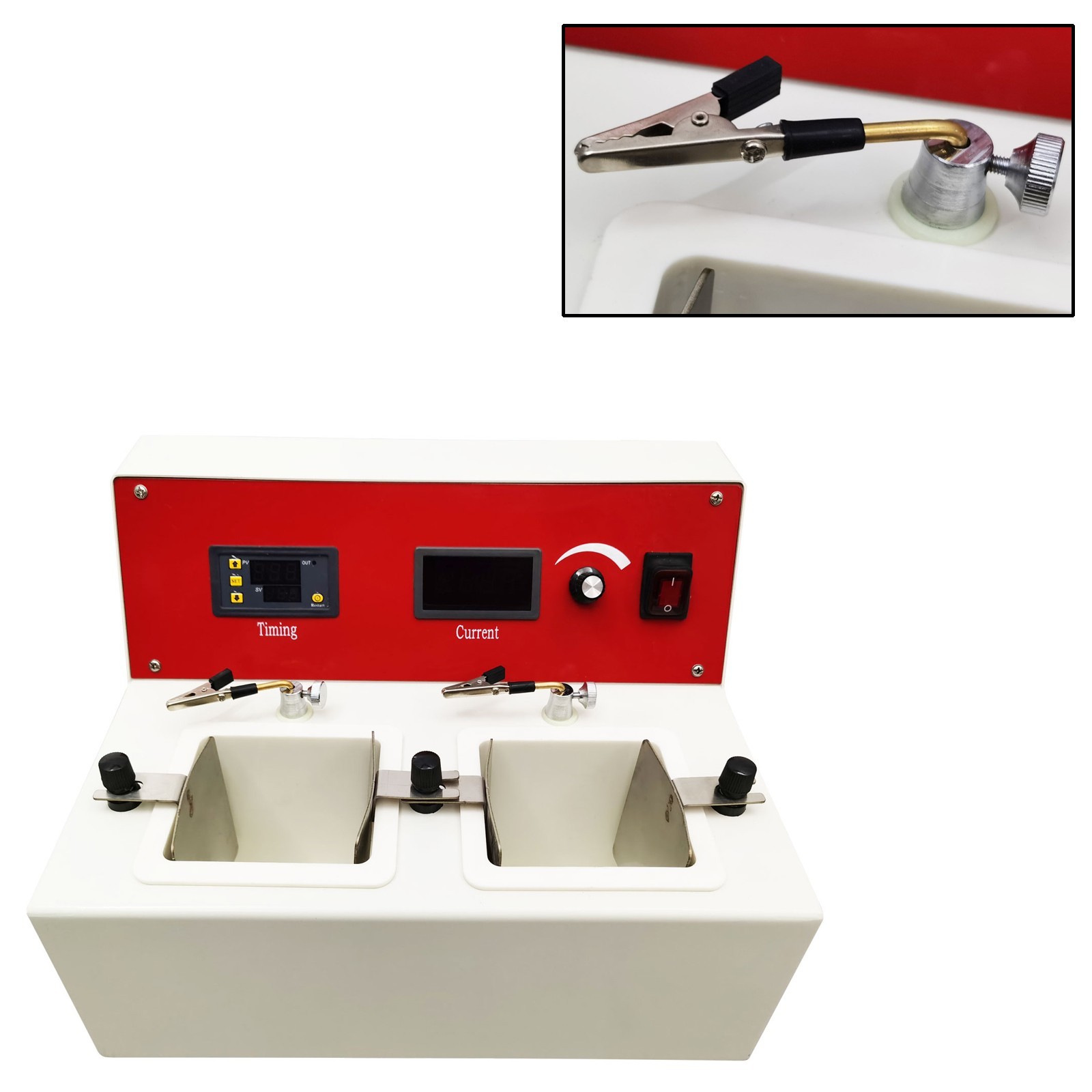

110V Double Slot Electrolytic Polishing Machine Electrolytic Polisher
illuSiyameProduct OverviewThis machine is used for oral orthosis and repair specialty. After sandblasting, the machine is used to electropolish the stainless steel or cobalt alloy castings such as denture bracket, crown bridge and clamp ring, so that the surface finish of the castings can meet the requirements. Can also be used for special crafts metal casting processing. The machine is compact in design, beautiful in appearance, small in size, easy to place, using double cylindrical electrolytic cell, working at the same time, high efficiency, suitable for electrolytic polishing of castings at different angles. The cathode of the machine is cylindrical, the anode is V-shaped bracket, and the bracket is equipped with alligator clipping casting. The timing switch controls the electrolytic polishing time, and the electrolytic polishing current can be continuously controlled.Product ParametersVoltage:110VPower:250WAverage anode current:Constant current adjustableDc output voltage:0-20VTime range:0-15minElectrolytic cell capacity:800MLPackage size:18.9\"*13.78\"*11.81\" (48cm*35cm*30cm)Net weight/Gross weight:17.75LB(8.05KG) / 20.94LB(9.5KG)Product Features & AdvantagesElectrolytic Cells
This machine is equipped with two electrolytic cells can be cleaned, two anodes, can be used at the same time, improve the efficiency, convenient and practical.
Vent Hole
There are a large number of vents on the back of the machine, which can timely discharge the excess heat generated by the machine, prevent the temperature from being too high, and protect the machine.
Control Panel
LED digital tube display panel, intuitive display of time and current, simple and convenient operation, reading at a glance. The working time and current can be appropriately adjusted according to the size of the workpiece.
Support Legs
Four rubber support legs at the bottom, which are non-slip, wear-resistant, good silence, can ensure the stability of the machine, and can prevent water from entering the machine from the bottom.
- The output voltage of the machine is stable, controlled in the best range, and the current distribution is uniform, which can effectively avoid excessive electrolysis Influence on the size of the workpiece.
- Select precision potentiometer, adjust current more accurately.
- With overload, overheating protection function, longer service life.
Operating Instructions1. Pour the electrolyte into the electrolytic cell, and fix the electrolytic tile (cathode) by both ends of the electrolytic cell.
2. Clamp the bracket (workpiece) with the clamp (anode), the workpiece should be connected with copper wire hanging, put into the electrolyte, pay attention to not contact with the electrolytic tile.
3. Set the working time and adjust the current according to the size of the workpiece, it is recommended to use high current to quickly deal with the surface, and then reduce the current to increase the brightness of the mirror.
4. After setting time is over, take out the bracket (workpiece) and rinse it with water.
