12V (8V-36V) to 5V 3A 15W DC-DC Waterproof USB-C Step-Down Buck Converter Module:
$10.49

Convert 8-36V DC to a stable 5V output with our compact 3A 15W DC-DC Converter Module, featuring a waterproof IP68 design and USB-C compatibility. Ideal for powering mobile devices, this reliable converter ensures safety with overload and voltage protection. Lightweight and easy to use, it is perfect for outdoor or travel needs. Enjoy fast free shipping from our US location!

Electronics for IoT, Prototyping & DIY

12V (8-36V) To 5V 3A 15W DC-DC Waterproof Step-Down Buck Converter with USB-C Output Cable -- F23J5V3A1S-C

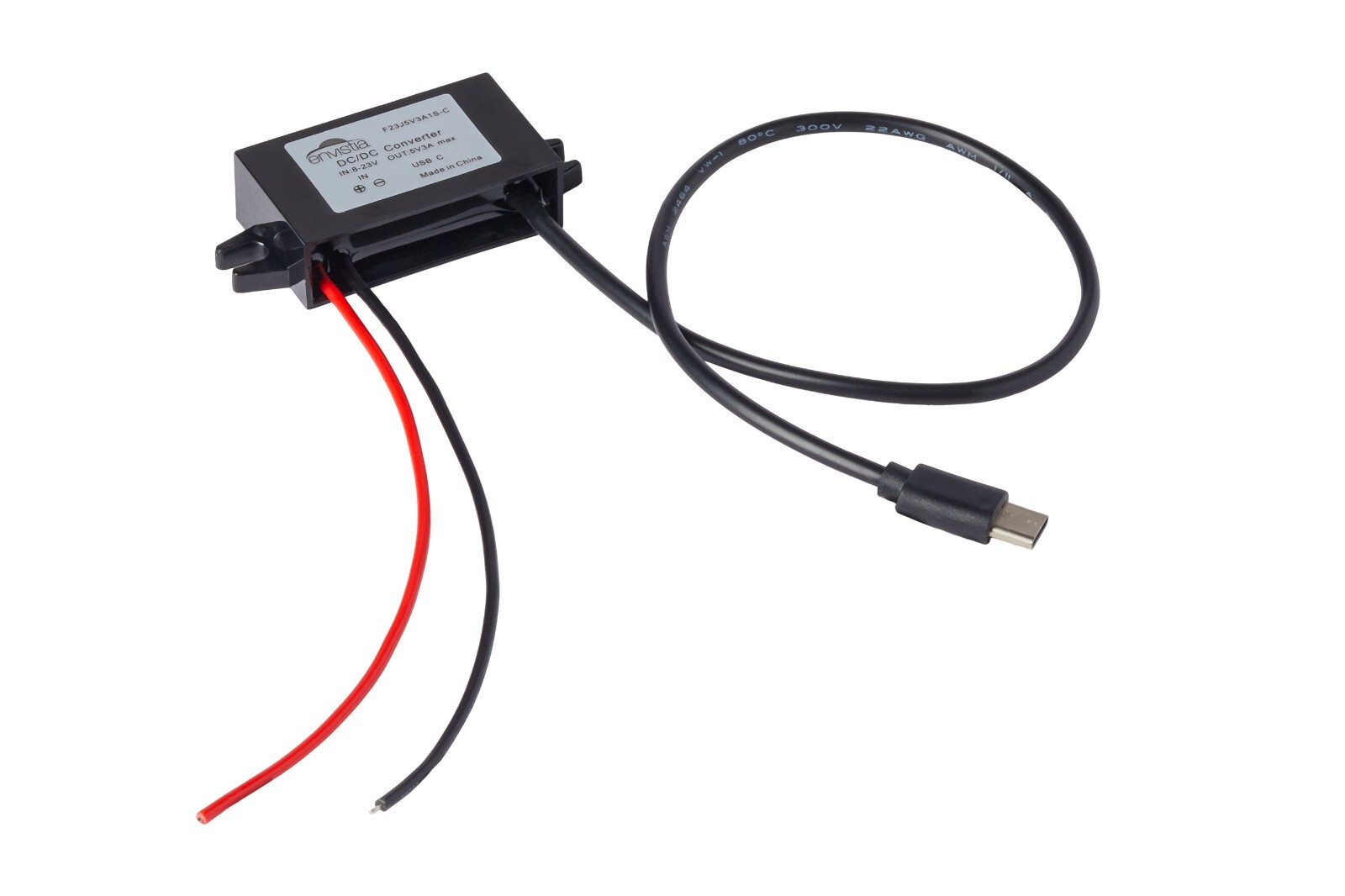

The F23J5V3A1S-C is a compact, IP68 waterproof DC-DC step-down buck converter that converts 8V–36V DC input (nominally 12V) to a stable 5V DC output at up to 3A (15W) through a USB-C connector. Ideal for charging phones, powering dash cams, GPS units, Raspberry Pi boards, and other USB-C devices directly from a vehicle, boat, solar panel, or battery system. The high-efficiency switching design (~85%) is sealed in an epoxy-filled housing with integrated mounting tabs for permanent installation in demanding environments.

⚠️ Important: This module is NOT a PD Fast-Charger. It outputs5V only and does not include a USB Power Delivery (PD) negotiation chip. It charges devices that accept standard 5V USB power. Devices that require PD negotiation (such as USB-C laptops) will not charge from this module, and some PD-capable devices may default to USB baseline current (0.5–0.9A) instead of drawing the full 3A available. See the USB-C Compatibility section below. ⚡ Key Features

Wide Input Voltage Range -- Accepts 8V to 36V DC, compatible with 12V automotive, marine, and solar battery systems
Stable 5V 3A Output -- Delivers up to 15W of regulated power through a USB-C connector
IP68 Waterproof -- Fully sealed epoxy housing rated for dust-tight and submersion protection
High Efficiency -- 85% typical, minimizing heat and wasted energy
Built-In Protections -- Overload, over-current, over-voltage, and low-voltage protection with auto recovery
Compact and Lightweight -- Only 46 × 27 × 14 mm (1.81 × 1.06 × 0.55 inches) and 36g (1.3 ounces), fits in tight installation spaces
Mounting Tabs -- Integrated tabs with screw holes for secure, permanent installation
Bare Wire Input -- Easy to connect to any DC power source with standard wiring methods

📐 TypeDC-DC Step-Down (Buck)TopologyNon-IsolatedInput Voltage8V – 36V DC (12V nominal)Output Voltage5V DC (fixed)Maximum Output Current3AMaximum Output Power15WEfficiency85% typicalVoltage Regulation±3%Load Regulation±5%Output Ripple (Full Load)<120mVp-p, typically 46mVp-pNo-Load Current< 10mAOutput ConnectorUSB Type-C (male)Input ConnectionBare wire leads (Red = positive, Black = negative), 22 AWGInput Wire LengthApprox. 16 cm (6 inches)Output Cable LengthApprox. 28 cm (11 inches)Waterproof RatingIP68Operating Temperature-40°C to +55°CProtectionsOverload, over-current, over-voltage, low-voltage (auto recovery)Module DimensionsApprox. 46 × 27 × 14 mm (1.81 × 1.06 × 0.55 inches) L × W × HOverall Length (with tabs)Approx. 63 mm (2.48 inches)Weight36g (1.3 oz)USB Data SupportNo -- power onlyPD NegotiationNo -- 5V fixed output only 🔌 USB-C Compatibility

This module is NOT a PD Fast-Charger. It provides5V power only through its USB-C connector and does not include a USB Power Delivery (PD) negotiation chip. When a PD-capable device doesn't receive a PD response, it typically defaults to the USB baseline current limit (0.5–0.9A) as a safety precaution -- the device limits itself, not the module.

✅ Works Great With

Most smartphones (Android and iPhone) -- charges at standard 5V speed
Dash cams -- designed for 5V USB power, fully compatible
GPS units -- standard 5V USB devices
Action cameras (GoPro, etc.) -- typically 5V powered
Raspberry Pi 4 / Arduino -- 5V 3A is the recommended supply
USB-C LED lights, fans, and accessories -- simple 5V devices

⚠️ Limited Compatibility

Tablets (iPad, Samsung Tab) -- may default to baseline current (0.5–0.9A) and charge very slowly
Quick Charge devices -- will fall back to standard 5V, not fast charge speeds
Nintendo Switch (handheld) -- may charge very slowly at baseline current

🚫 Not Compatible With

USB-C laptops -- require PD negotiation at higher voltages (typically 20V)
Nintendo Switch dock -- requires PD negotiation at 15V
Any device that requires PD negotiation to begin charging

📦 What's in the Box

1x F23J5V3A1S-C DC-DC Converter Module with USB-C output cable

Mounting screws, input power source, and connected devices are not included.

🔧 WiringRed WirePositive (+) terminal of DC power source (8–23V)Black WireNegative (−) / Ground terminal of DC power source 💡 Tip: Install a 3A to 5A slow-blow inline fuse on the positive (red) input wire for added protection. For automotive installations, connect to a switched circuit so the converter turns off with the ignition and doesn't drain your battery. 🎯 Typical Applications

Vehicle phone and device charging (car, truck, motorcycle, ATV, RV)
Dash cam hardwired power supply
Marine electronics -- USB charging from 12V boat battery
Solar and off-grid systems -- 12V battery to USB-C conversion
Raspberry Pi / single-board computer power from 12V battery
GPS and navigation unit hardwired power
Action camera continuous power (GoPro, etc.)
USB-C LED lighting and accessories from 12V systems

⚠️ Important Notes

Do not exceed 36V input voltage. Input above 36V may damage the module.
Do not reverse polarity. Always connect red to positive (+) and black to negative (−). Reversed connections can permanently damage the module.
No USB data support. This module provides power only -- no data transfer, video, or other USB data functions.
No PD negotiation. Outputs 5V only. It is not a PD Fast Charger. Devices requiring USB PD may default to baseline current (0.5–0.9A) or may not charge at all.
Non-isolated topology. Input and output grounds are electrically connected.
Waterproof rating applies to the module body. The USB-C connector is not waterproof when exposed -- protect the connection point in wet environments.
Operating temperature: -40°C to +55°C. Avoid mounting in locations that exceed this range.
