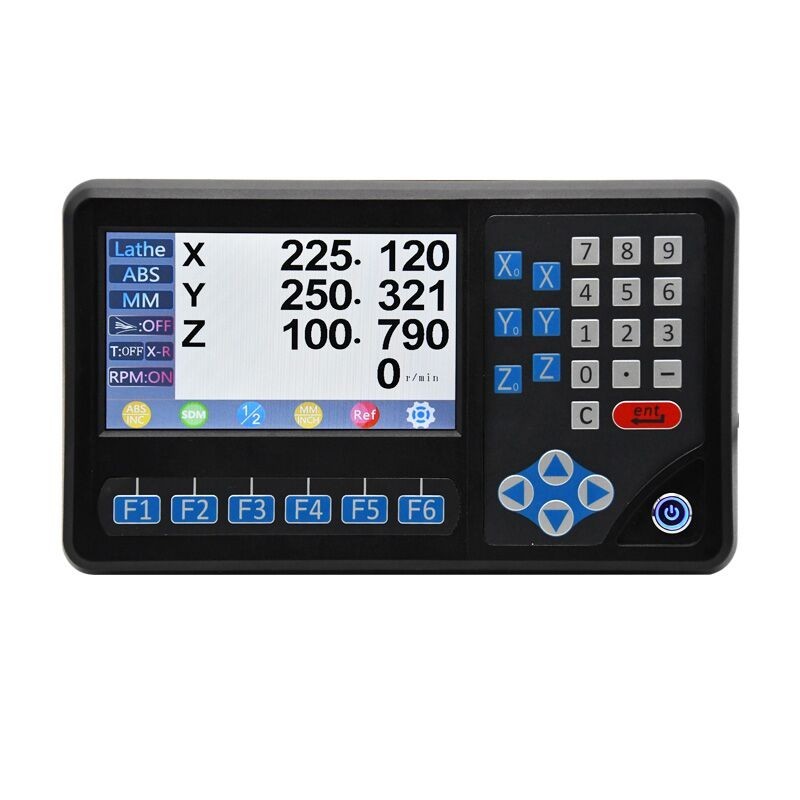

DITRON 3 axis Digital Readout D80 With Speed RPM Display 3 Axis For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

DITRON 3 axis Digital Readout D80 With Speed RPM Display 3 Axis:
$220.00

DITRON is a good DRO and linear scale manufacturer in China. It has been specially working in this industry many years and main business is making display and linear encoder for international sales.

DITRON LCD D80 Digital ReadoutD80 digital readout is divided into two axis ,three axis,four axis and five axis, suitable for all kinds of machine tools- milling machines, surface grinders, cylindrical grinders, lathes, wire cutting, punching machines, electric discharge machines, etc.

Technical Parameters :

Voltage :AC 80V-260V /50 HZ-60 HZ
Power Dissipation: 15 W
Coordinate Display :2,3,4,5 Axis
Input Signal : 5V TTL / RS422
Weight : 2.3 KGS

Feature :

Optional function-RPM /RS232 /EDM
7 Inch true color LCD Screen, easy to recognizing.

Built-in user manual,free the hands from the paper manual.
Multi-system style="margin: 0px; padding: 0px; font-family: "Microsoft YaHei"; font-size: 12px; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-indent: 0px; text-transform: none; white-space: normal; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; background-color: rgb(255, 255, 255); text-decoration-thickness: initial; text-decoration-style: initial; text-decoration-color: initial; text-align: left; line-height: 24px;">
- Saving the drawing function ,the DRO allow to save the drawings in to system which makes the machine to be much convenient.
- Special previewing drawing function ,after setting well the parameter , DRO will display the machined well effect which makes the operation be more visual.
This listing includes the following:

Digital readout - D80-3V-RPM Display (plastic box) with DRO bracket and English manual 1 set
(D80 with metal box is also available. Price is higher.)
This D80 DRO is of 3 axis and with Hall censor and cable. So it can display the turning speed (RPM) of lathe spindle.
Most of important, it has a Constant linear velocity cutting function. No matter the shaft's different parts have different diameter, the cutting point's Surface linear velocity is same. So can assure different parts' surface finish is same.
Gross weight 2.4 KGS. Volume weight 3.5 KGS.

DELIVERY TIME
Usually about one week.

The biggest listing value is USD500 for each listing in my store. So if customer needs linear scales or magnetic scales and total value exceeds USD500. I will make one or 2 more listings for customer to place order.
