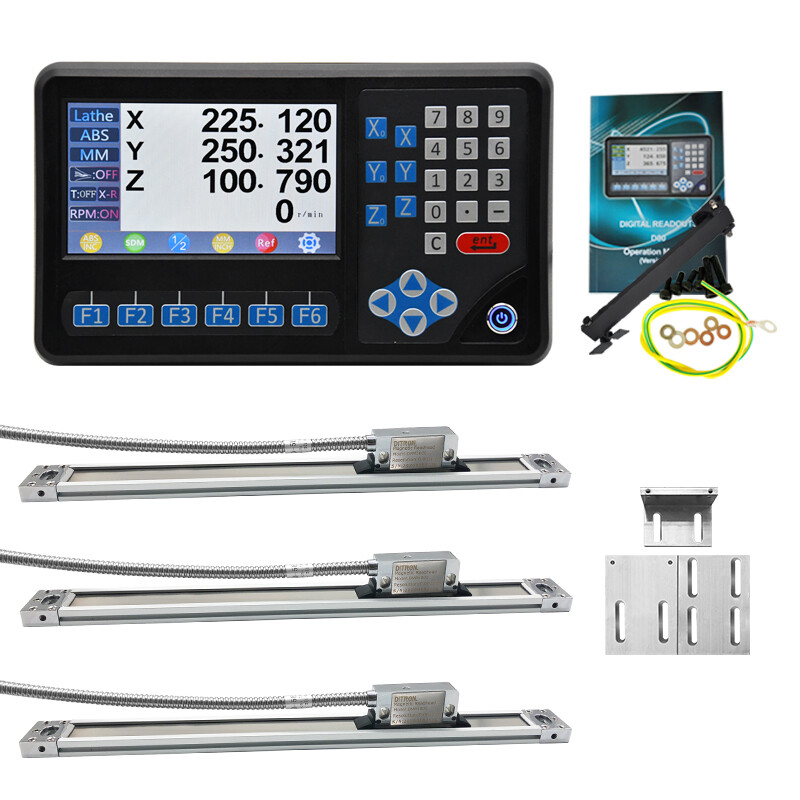

Ditron 3pcs DRO 1um Magnetic Scale 3 Axis Digital Readout Mill Milling Machine:
$487.50

What do you get ?

1) 3 Axis LCD Display

2) 3 pcs magnetic scale 1um resolution

3) All necessary mounting hardware

4) Mounting Arm

5) Information manual

6) Power cord and ground wire.

Travel length (LO): 170mm ,220mm ,270mm ,320mm , 370mm , 420mm ,470mm ,

520mm ,570mm ,620mm ,670mm ,720mm ,770mm ,820mm ,870mm ,920mm ,970mm ,1020mm

Pls leave message for the travel length if you choose custmoized travel length

Why us?

Complete function,simple operation
Highly integrated,simple electric circuit design,stable work
Over 100,000 On-Off test
RENISHAW's Laser interferometer
Compatible linear scale,magnetic scale & rotary encoder
Unique misoperation recovery function
DRO PC control
Calculator function set coordinate
Customization software
Multiple drawing save function
Drawing preview
Tool position display
Selection of screen colors
Help function (Very useful for your Functions
- 1)Zeroing
- 2) 200 sets of SDM Coordinate
- 3)Input Coordinate
- 4) Ref Ruler Storage Function
- 5)Display in Metric / INCH
- 6) Calculator
- 7)Power Off Memory Function
- 8) Non-linear Compensation
- 9)Encoder Selection
- 10) 1/2 Function
Basic Functions
- 11)Linear Compensation
- 12) Rotational Speed Measurement(Customized ,Cost extra)
- 13)Counting Direction Selection
- 14)ABS/INC Coordinate
- 15) RS232 (customized,cost extra)
- 16) Data Recovery
Feature
- Complete function,simple operation
- Highly integrated,simple electric circuit design,stable work
- Over 100,000 On-Off test
- Unique misoperation recovery function
- Multiple drawing save function
- Drawing preview
- Tool position display
- Compatible linear scale,magnetic scale & rotary encoder
Magnetic scale
Features
- Fully sealed readhead with perfect structure of the profile akes it match IP67 protection class
- With the tabletting inserted two sides of the profile makes the installation have more choices
- 5 holes laid on the each end cap for adjustment makes the installation have more easier
- RS422 full differential signal
- Special profile connectiong way with the needle,flexible to install
- Full kinds of installing brackets
- Installing brackets inserted into the profile makes the installing be easy
Any question,pls feel free to contact with us
Features
- Rubber wiper to clean out surface completely
- Advanced technics and inner structure
- Automatic gain control technics,reduced the requirement for installation,The gap between the reaader and tape can be 3mm (5 micron)
- Protection of the anti-pole of the power and wrong ire connection(voltage<5.5V)
- High speed,can reach 150Meter/minute for the resolution of 5 micron
Features
- Magnetic scale can cut if it is long
- Stainless steel strip to protect magnetic tape
