HANMATEK DOS1102 110MHz 1GSa/s 2CH Digital Oscilloscope Kit with 7” LCD Screen For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

HANMATEK DOS1102 110MHz 1GSa/s 2CH Digital Oscilloscope Kit with 7” LCD Screen:
$169.99

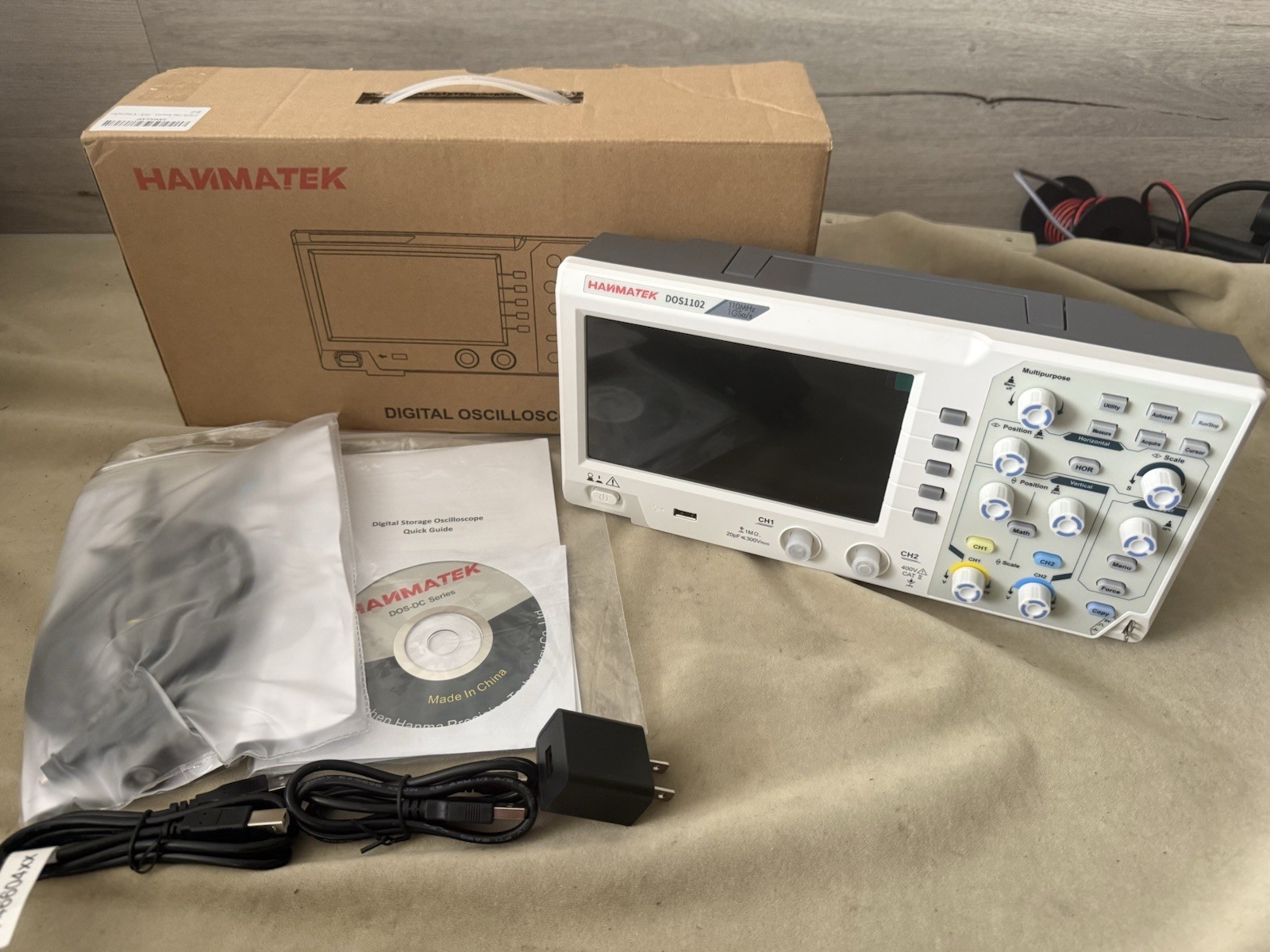

The HANMATEK DOS1102 Digital Oscilloscope Kit is a professional instrument designed for precise measurements and inspections in a variety of industrial applications. With a maximum real-time sampling rate of 1GSa/s and a maximum bandwidth of 110MHz, this oscilloscope provides high-quality analysis and data acquisition. The 2 channels and 8-bit resolution ensure accurate and detailed results, while the 7" LCD screen and included probe offer ease of use and convenience. Additionally, the software includes USB connectivity for efficient data transfer and storage. Ideal for businesses seeking reliable and advanced testing equipment. It is a discounted open box item in its original retail box with all of the pictured accessories included. I’ve also included some additional specifications and features below.

What you see pictured is exactly what you will receive. Fast and free shipping every time sending all purchases out same or next business day. Buy with confidence from a reliable seller. Any questions feel free to ask and I will answer them as quickly as possible.

Top highlights:

View 30 measurements instantly with one click

Zoom into waveforms for precise detail reading

Built-in FFT shifts from time to frequency domain

★ 1: 110 MHz bandwidth, 500 MS/s *2 real-time sampling rate, dual channels, 2 ns / Div ~ 1000s / Div time base range; 20 mV/div ~ 5 V/div vertical scale, storage depth (each acquisition The recording length of the waveform) is not less than 10K sampling points; it can store not less than 16 groups of waveforms, and has U disk storage function, USB device and host interface;

★ 2: 7-inch TFT LCD screen (true color), 65535 colors, resolution 800×480 pixels; supports cursor measurement, the cursor mode is no less than voltage difference (△V), time difference (△T), time difference and voltage difference (△ V) Four modes of automatic cursor;

★ 3: It has automatic range function and supports horizontal, vertical, single waveform/multiple waveform tracking; there are four probe attenuation multiples: 1X, 10X, 100X, and 1000X;

★ 4: Built-in 6-digit hardware frequency meter, capable of measuring 2 Hz ~ 20 MHz; with current measurement function, measurement range: 100.0 mA/V ~ 1 kA/V; with U disk storage function; USB device and host interface;

★ 5: It has 30 automatic measurement functions and can customize the measurement menu; it has a waveform capture function, supports LABVIEW communication, supports secondary development, and complies with SCPI specifications; powered by DC.

Product specifications:

Additional Features Portable

Specific Uses For Product Electronic testing, measurement, and troubleshooting

Color Grey

Aspect Ratio 16:9

Screen Finish Glossy

Contrast Ratio 2000:1

Display Type LCD

Display Technology LCD

Brand HANMATEK

Model Number DOS1102

Model Name DOS1102
