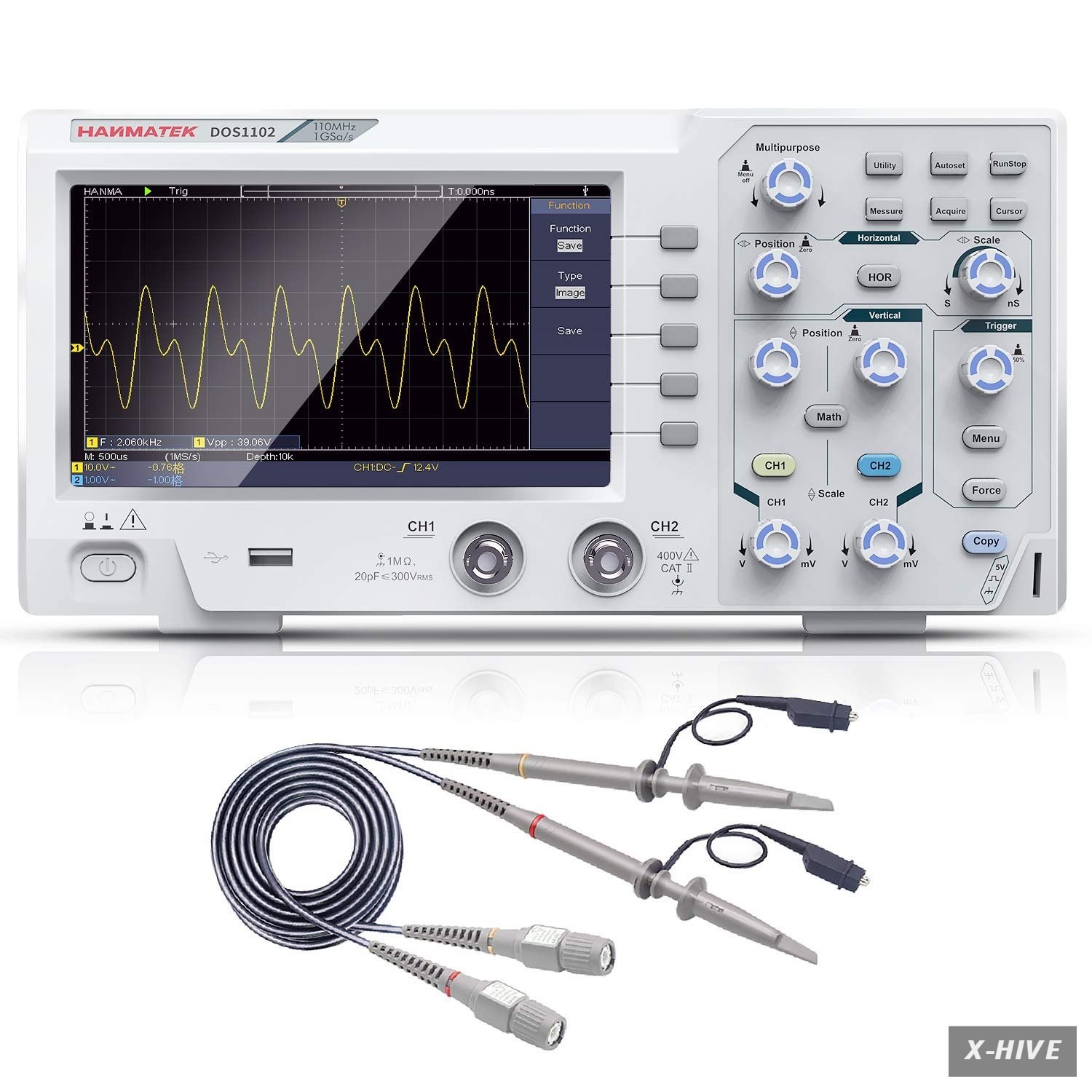

Oscilloscopes 7 inches HANMATEK 110mhz Bandwidth DOS1102 Digital Oscilloscope 2 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Oscilloscopes 7 inches HANMATEK 110mhz Bandwidth DOS1102 Digital Oscilloscope 2:
$269.99

A practical choice for buyers looking for hanmatek 110mhz bandwidth dos1102 digital oscilloscope with 2 channels and screen 7 inch / 18 cm, tft-lcd display, portable professional oscilloscope kit with 500 ms/s *2 sampling rate.

Product overview

One-Click Show All Measurements Built-in FFT Spectrum Analysis Function Waveform Zoom Function Auto Cursor Function Support Multi-Languauge 7 inch TFT (True Color) LCD screen Automatic range function U disk storage function Portable and Lightweight 500 MS/s *2 Sampling Rate Open the Waveform zoom mode. The upper part of the display shows the main window and the lower part shows the zoom window. The zoom window is an enlarged portion of the selected area in the main can observe more waveform details,Reading parameter data is easier. FFT conversion from time domain to frequency unit of FFT analysis of this DOS1102 oscilloscope is the voltage is more intuitive than the decibel (db) display of traditional oscilloscopes.

Key features

1: 110 MHz bandwidth, 500 MS/s *2 real-time sampling rate, dual channels, 2 ns / Div ~ 1000s / Div time base range; 20 mV/div ~ 5 V/div vertical scale, storage depth (each acquisition The recording length of the waveform) is not less than 10K sampling points;
2: 7-inch TFT LCD screen (true color), 65535 colors, resolution 800×480 pixels; supports cursor measurement, the cursor mode is no less than voltage difference (△V), time difference (△T), time difference and voltage difference (△ V) Four modes of automatic cur
3: It has automatic range function and supports horizontal, vertical, single waveform/multiple waveform tracking; there are four probe attenuation multiples: 1X, 10X, 100X, and 1000X;
4: Built-in 6-digit hardware frequency meter, capable of measuring 2 Hz ~ 20 MHz; with current measurement function, measurement range: 100.0 mA/V ~ 1 kA/V; with U disk storage function; USB device and host interface; host software download Address:
5: It has 30 automatic measurement functions and can customize the measurement menu; it has a waveform capture function, supports LABVIEW communication, supports secondary development, and complies with SCPI specifications; powered by DC.

Product detailsBrandUnbrandedScreen Size7 inchesResolution800 x 480 pixelsAspect Ratio16:9Screen Surface DescriptionGlossyScreen FinishGlossyContrast Ratio2000:1Display TypeLCDDisplay TechnologyLCDItem Dimensions D x W x H2.76"D x 11.85"W x 5.98"HItem Weight2.4 poundsDisplay Resolution Maximum800x480 pixelsNative Resolution800 x 480Power Consumption18 wattsConnectivity TechnologyusbHardware ConnectivityUSBAdditional FeaturesPortableSpecific Uses For ProductElectronic testing, measurement, and troubleshooting

Package contents are based on the product information shown above. Please confirm compatibility, measurements, and required specifications before ordering.
