Hilitand 4-Channel MOSFET PWM 3-20V to 3.7-27VDC 10A Driver Module PLC Amplifier:
$15.43

Hilitand 4-Channel MOSFET PWM 3-20V to 3.7-27VDC 10A Driver Module PLC AmplifierDescription Voltage 27 volts_of_direct_current Maximum Supply Voltage 20 volts Minimum Supply Voltage 20 volts Mounting Type Surface Mount Number of Channels 4 Output Power 1080 watts Package Type Name small box Supply Current 10 A Item Dimensions 2.17 x 1.97 x 0.39 inches Manufacturer Hilitand Model YYNMOS-4 Brand Name Hilitand Part Number Hilitandgamf9256ue6520 Item dimensions L x W x H 2.17 x 1.97 x 0.39 inches

Product description Specification:

Model: YYNMOS-4
Input signal: 3~20V PWM signal
PWM frequency: 0~1kHz
Output capacity: DC 3.7V~27V, current of each channel ≤ 10A
Weight: 27g (approx.)
Package list: 1 * PLC Amplifier Circuit Board

Wiring Terminal Description:

DC+: DC power supply positive
DC-: DC power supply negative
PWM: Signal input terminal (connected to the single-chip IO port, PLC interface, DC power supply, etc.)
GND: Signal negative terminal
OUT+: Output positive terminal (connected to the device positive)
OUT-: Output negative terminal (connected to the device negative)

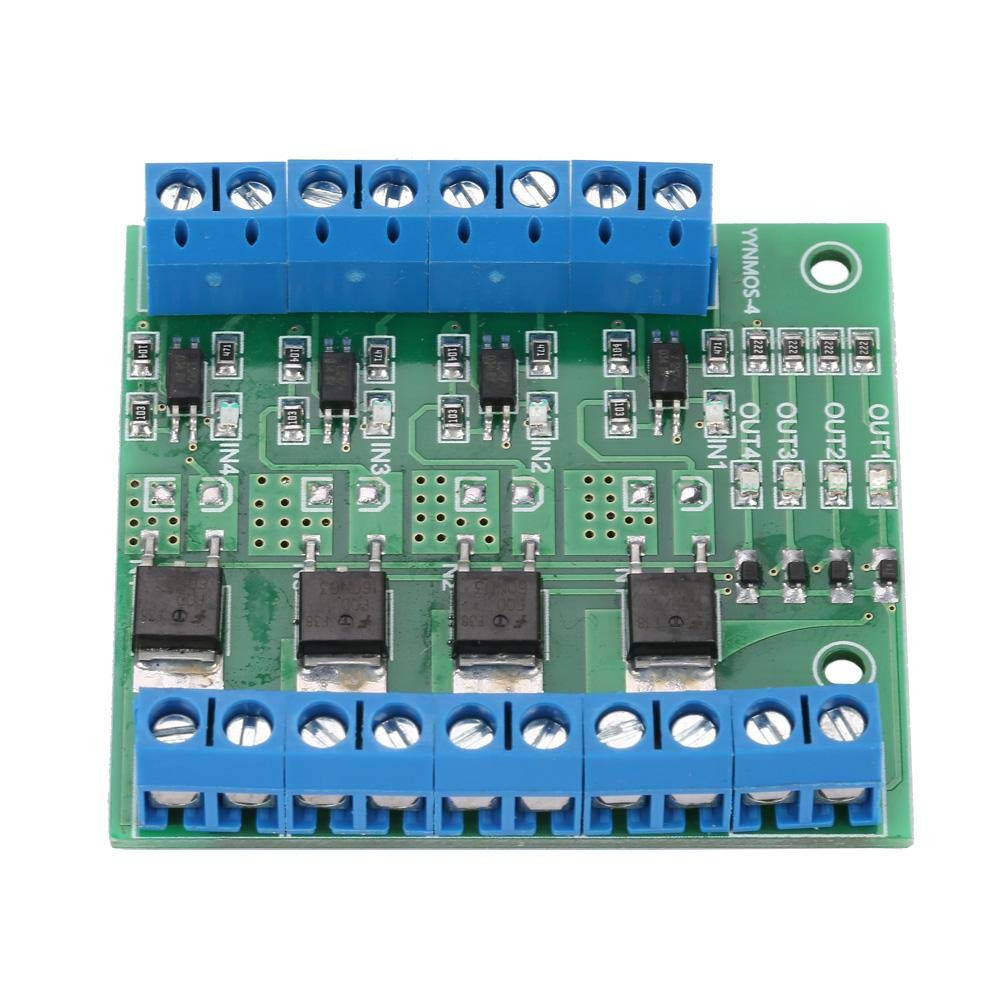

PLC Amplifier Circuit Board:

Input connect to single-chip I0, PLC interface, etc
Power supply +/-is the power supply of the device controlled by output
OUT+ and OUT- directly connect to DC load such as motor, solenoid valve, etc

Using high quality ultra-small optocoupler, with strong anti-interference ability and stable performance.
The input signal and output signal is completely isolated.
With input/outpt signal indicator.
Onboard screw terminal block for quick wiring.
The output can control high-power equipment, bulb, LED strip, DC motor, micro pump, solenoid valve, etc.
Application note: The output terminal can control high-power equipment, motors, bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc., and can input PWM to control motor speed, lamp brightness, etc.

【STABLE PERFORMANCE】The mosfet board using high quality ultra-small optocoupler, with strong anti-interference ability, and is complete isolation of input and output.
【PWM】The MOSFET driver module can input PWM to control motor speed, lamp brightness and so on.
【INDICATOR LIGHT】The PLC amplifier circuit board with input and output indicator.
【WIDE APPLICATION】The output can control high-power equipment, bulb, LED strip, DC motor, micro pump, solenoid valve, etc.
【EASY INSTALLATION】The mosfet switch with professional design is easy to install.
