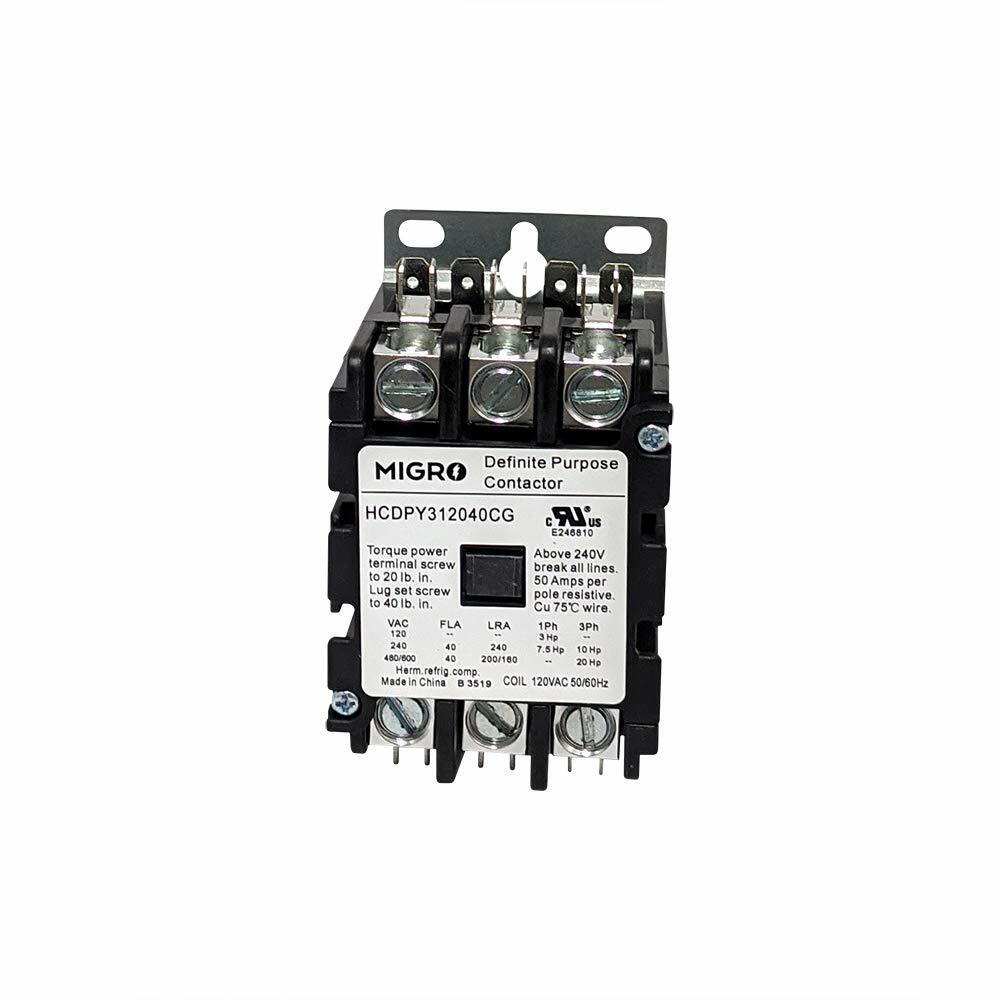

Migro 40A 3 Pole NO NEMA 600V HVAC Definite Purpose Contactor – 110/120VAC For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Migro 40A 3 Pole NO NEMA 600V HVAC Definite Purpose Contactor – 110/120VAC:
$45.99

Migro 40 Amp 3 Pole Normally Open NEMA 600V HVAC Definite Purpose Contactor – 110/120VAC Coil, Inductive 40A, Resistive 50A

NDUSTRIAL QUALITY COMPONENTS – 40Amp 3 Pole Normally Open (NO) Definite Purpose Contactor for HVAC (Heating, Ventilating and Air Conditioning) installations in home and industry. Complies with NEMA 2 standard for consistent and reliable setting

APPLICATIONS – Heating, refrigeration and lighting. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans

40 Amp 3 Pole Normally Open NEMA 600V HVAC Definite Purpose Contactor for heating, refrigeration and lighting installations. Complies with NEMA 2 standard.
Technical Specifications:– AC 40A. Definite Purpose. 600V– Max 2 HP Single Phase @ 115V, 10 HP @ 230V, 15 HP Three Phase @ 480V– DC 30A 24VDC– Coil:120VAC, 67VA inrush, 15VA sealed– Normally Open (N.O.) main contacts– UL Listed– Coil 110/120 VAC– Weight: 1.08 lb (0.55 kg)– Dimensions: 77.00 x 95.80 x 77.00 mm (3.00'' x 3.77'' x 3.00')
Compliance:CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1, UL 508, VDE 0660
