Orientek T49 Fiber Optic Fusion Splicer with 8s Fast Splicing,FTTx Splicer Kit:
$495.00

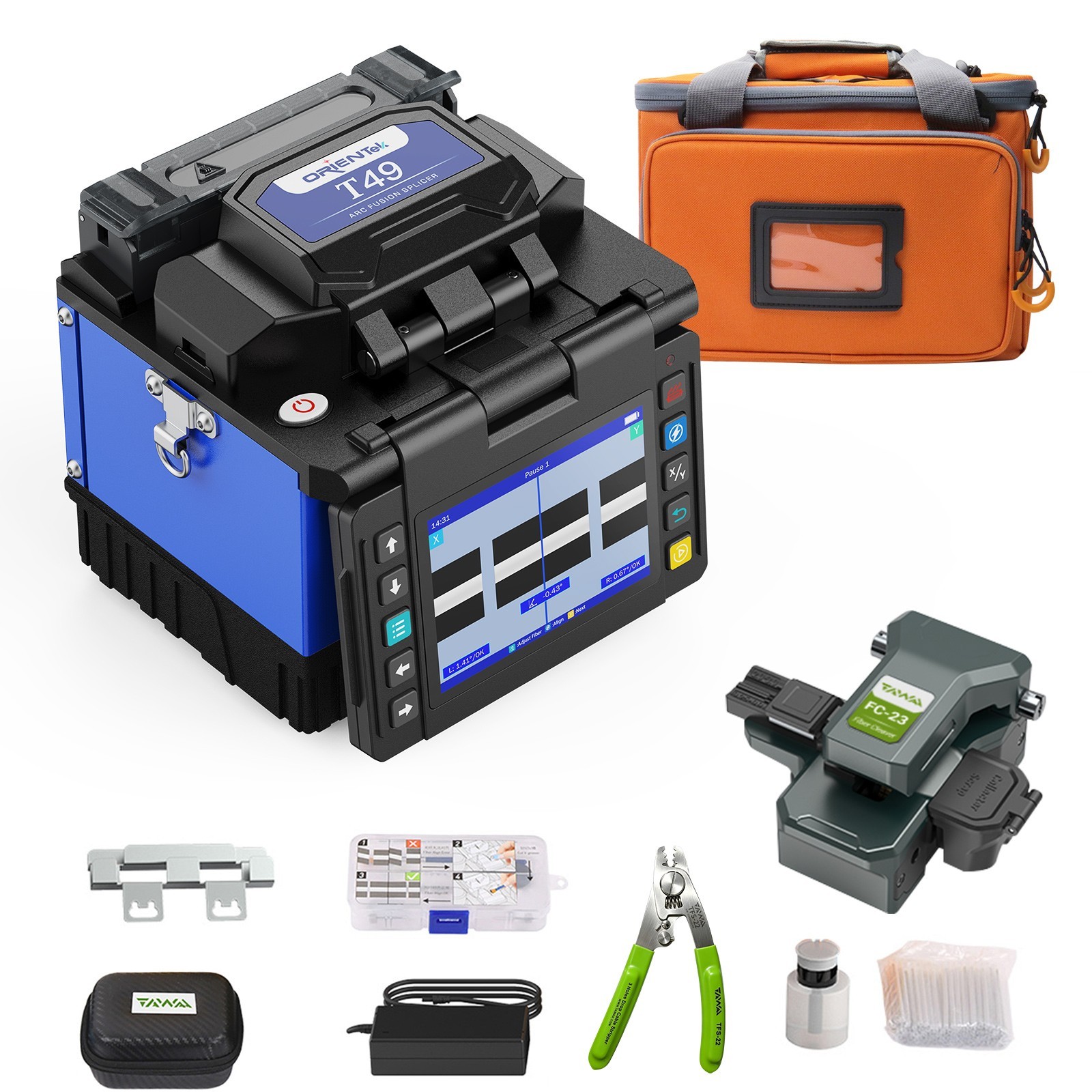

Orientek T49 Fiber Optic Fusion Splicer with 8s Fast Splicing,FTTx Splicer Kit

Orientek T49 FTTx Mini Fusion Splicer Active Clad-Alignment 3.5 inch Display 8S Fast Splicing

Feature Description:

Fast Splicing & Heating --- 8s splice time and 18s heating time for efficient field operations.
Low Splice Loss --- Typical splicing loss reaches 0.01dB~0.04dB for different fiber types, with return loss over 60dB, ensuring optimal signal transmission.
Active Clad Alignment --- 4-motor Clad alignment with automatic arc compensation for precise, consistent splicing.
Extended Electrode Life --- Electrode life up to 5,000 splices with tool-less replacement for easy maintenance.
High-Resolution Display --- 3.5-inch color HD screen (800×480) with 320x magnification for clear fiber core viewing.
Ample Data Storage --- Stores up to 10,000 splice records and 2,000 result images.
Durable & Portable Design --- Compact, sturdy, waterproof and dustproof construction built for harsh field environments.
Versatile Fiber Compatibility --- Adaptation Equipped with upgraded 3-in-1 fiber holder，Supports SM, MM, DS, NZDS fibers; compatible with 0.25mm, 0.9mm, 3.0mm, flat, and drop cables.
Long-Lasting Battery --- 3400mAh lithium battery supports approximately 120 splice & heat cycles per charge.
Comprehensive Accessory Package --- Includes FC-23 cleaver, fiber stripper, charger, battery, protection sleeves, carry case, cutter storage box, and 2-layer cooling tray.

Splice Method :

Active Clad-Alignment

Applicable Fibers:

SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Compatible Fiber/Cable :

0.25~3.0 mm / indoor flat cable

Fiber Holder :

Replaceable

Fiber Diameter:

Cladding: 80-150μm，Coating: 100~1000μm

Fiber Cleave Length :

8~16 mm

Splice mode :

Max 128 modes

Typical Splice Loss :

SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB ★①

Return Loss :

>>60dB

Splicing Time :

SM Quick mode : 8 sec / SM Average: 10 Sec

Estimated Splice Loss :

Available

Heating Time :

Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable★②

Protection Sleeve Length:

20mm, 30mm, 40mm, 50mm, 60mm

Heat Programs:

Max 32 modes

Battery:

3400mAh Battery Capacity, Typical 120 Cycles (Splice&Heat) per Charge★③

Electrode Life :

5000 arcs （replaceable） ★➃

Auto-start:

Splice / Heating

AutomaticFiber

Identification:

Automatic ARC

Identification :

Automatic arc calibration by air pressure and temperature

Results Storage:

The last 10,000 splice records and 2,000 result images

Tension Test:

1.96~2.25N

Operating Condition :

Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s

Storage Condition :

0~95% relative humidity, -20~60°C

Display :

3.5” color high resolution (800 x 480) display

Fiber Magnification :

X, Y, XY, X/Y : 320X Magnification

Power Supply:

AC Input 100-240V, DC Input 9-14V

Terminal:

USB2.0

Weight:

1.06kg without battery / 1.35kg with battery

Size:

130H x 113W x 126D mm

**Warranty Repair**:

The complete unit is covered under standard warranty service. Free repair is provided for intrinsic quality failures within the warranty period. Repairs for man‑made damage are available at the buyer’s expense, including costs for spare parts, labor and logistics.

**30‑day Quality Return upon Goods Receipt**:

Within 30 calendar days from the date of goods receipt, our company accepts returns for fusion splicers with non‑human‑caused product quality defects under normal operating conditions.

**Exclusions**:

Failures or damages resulting from drop impact, water ingress and moisture, external force damage, unauthorized disassembly or modification, operation not in accordance with the user manual, harsh working environment, normal consumable wear‑and‑tear or other man‑made/external factors are not covered under the 30‑day return policy.

every unit is fully calibrated before shipment, delivering consistent, low-loss splicing performance comparable to mainstream well-known fusion splicers.
