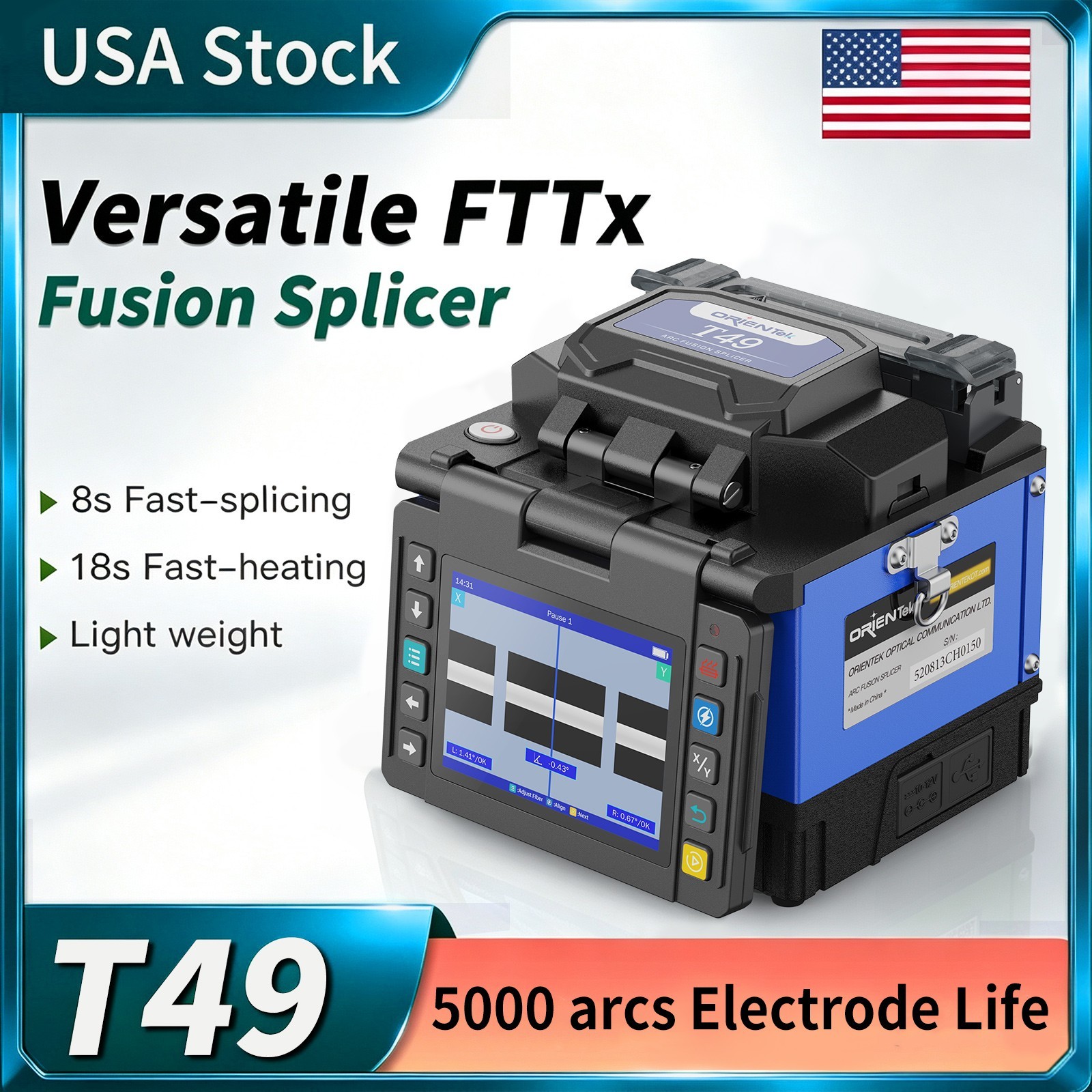

Orientek T49 Professional Fiber Optic Fusion Splicer Machine w/ 8s Fast Splicing:
$494.99
Orientek T49 FTTx Mini Fusion Splicer Active Clad-Alignment 3.5 inch Display 8S Fast Splicing
【8s Fast Splicing & 18S Rapid Heating】Supports quick splicing in 8 seconds and fast heating within 18 seconds, with up to 128 splicing modes and 32 heating modes to fit various fiber connection needs. It adopts automatic splicing and heating design to simplify operation and improve daily construction efficiency greatly.【Active Clad Alignment & Low Splicing Loss】Features active cladding alignment and 320X fiber image magnification. Typical splicing loss reaches 0.01dB~0.04dB for different fiber types, with return loss over 60dB. It can store 10,000 groups of splicing records and 2000 images for easy data checking and project filing.【Tool-Free Replaceable Electrodes & Long Service Life】Comes with durable ceramic fiber pressure heads and upgraded tool-free electrode replacement design; you can replace electrodes easily by simple screwing. The electrode service life reaches up to 5000 arcs, stable for long-term frequent field use.【Wide Fiber Compatibility & Harsh Environment】Adaptation Equipped with upgraded 3-in-1 fiber holder, compatible with 0.25~3.0mm bare fiber, jump fiber, pigtail, indoor flat cable and multiple ITU-T fiber standards. Can operate reliably under complex on-site conditions【3400mAh Battery & Lightweight Portable Design】Built-in 3400mAh rechargeable battery, supporting about 120 times continuous splicing and heating after full charge. Weighs only 1.35kg with compact size, lightweight and space-saving, perfect for height work, outdoor engineering and mobile maintenance tasks.Splice Method :
Active Clad-Alignment
Applicable Fibers:
SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable :
0.25~3.0 mm / indoor flat cable
Fiber Holder :
Replaceable
Fiber Diameter:
Cladding: 80-150μm，Coating: 100~1000μm
Fiber Cleave Length :
8~16 mm
Splice mode :
Max 128 modes
Typical Splice Loss :
SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB ★①
Return Loss :
>>60dB
Splicing Time :
SM Quick mode : 8 sec / SM Average: 10 Sec
Estimated Splice Loss :
Available
Heating Time :
Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable★②
Protection Sleeve Length:
20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs:
Max 32 modes
Battery:
3400mAh Battery Capacity, Typical 120 Cycles (Splice&Heat) per Charge★③
Electrode Life :
5000 arcs （replaceable） ★➃
Auto-start:
Splice / Heating
AutomaticFiber
Identification:
/
Automatic ARC
Identification :
Automatic arc calibration by air pressure and temperature
Results Storage:
The last 10,000 splice records and 2,000 result images
Tension Test:
1.96~2.25N
Operating Condition :
Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition :
0~95% relative humidity, -20~60°C
Display :
3.5” color high resolution (800 x 480) display
Fiber Magnification :
X, Y, XY, X/Y : 320X Magnification
Power Supply:
AC Input 100-240V, DC Input 9-14V
Terminal:
USB2.0
Weight:
1.06kg without battery / 1.35kg with battery
Size:
130H x 113W x 126D mm
