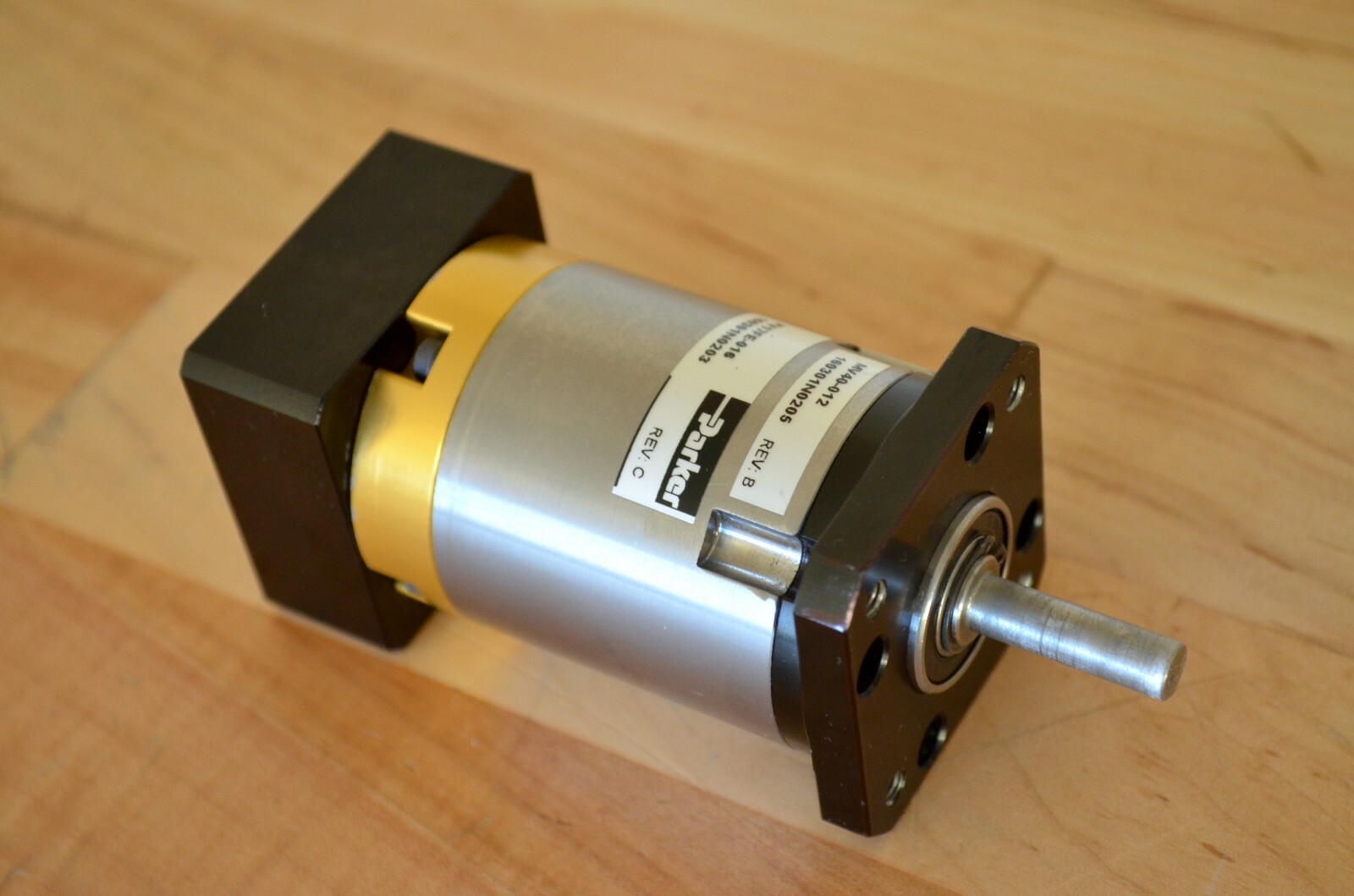

Parker Bayside PV17FE-016 Nema17 Planetary Gearhead 16:1 Ratio for 40mm Servo For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Parker Bayside PV17FE-016 Nema17 Planetary Gearhead 16:1 Ratio for 40mm Servo:
$115.00

Item Specifics:

Parker PV17FE-016

Planetary Gearhead, 16:1 Ratio

Output = Nema17 with 1/4" Shaft

Input = 40mm with 8mm Shaft

Item Description:

This is a lightly used Parker planetary gearhead that was

removed from working equipmentand is in excellent condition.

It is a modelPV17FE-016 with a 16:1ratio.

The input side of the gearhead will fit a 40mm frame

motorwith an 8mm shaft.The output side of the

gearhead is a size Nema17 with a 1/4" shaft.

PV17FE-016 Spec's:

Rated Output Torque = 57.525 in-lbs (6.5 Nm)

Peak Output Torque =150.050 in-lbs (13 Nm)

Nominal Input Speed = 4,500 rpm's

Max Input Speed = 8,000 rpm's

Average Efficiency = 94%

Radial Load = 200 N

Axial Load = 190 N

Manufacturer Website Link:

Shipping Details:Shipping rate applies to US only (includes Alaska & Hawaii)
International orders will be shipped via 's 'Global Shipping Program', please click on the 'Shipping and Payments' tab above and select your country from the drop-down menu to get a shipping quote from . If your country is not listed then please contact me for a shipping quote before placing a offer.
