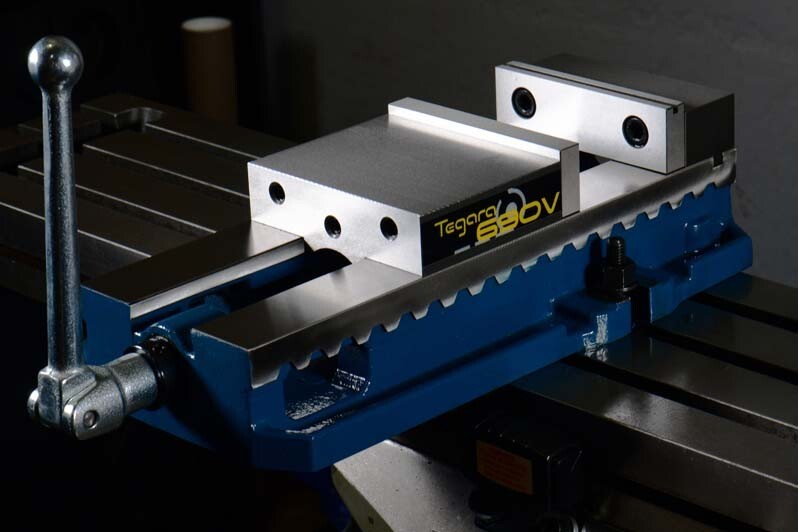

Tegara 6 690V CNC Premium Milling Vise .0004 D688 New R[:
$422.29

TEGARA 6" 690V CNC Milling Vise +/- 0.0004"Quality You Can Count OnProduct Description

SKU#: 202-0994
Jaw Width: 6"
Jaw Opening (Inner Jaw): 8.95"
Jaw Opening (Outer Jaw): 17"
Jaw Height: 1-3/4"
Bed Height: 2.875" +/-0.0005"
Jaw Plate Threads: 1/2"-13
Jaw Plate Threads Spacing: 3.875"
Clamping Force (LBS): 8200
Clamping Repeatability: +/-0.0004"
Weight: 90 Lbs
Model#: 690V

Product ApplicationOur newest V series vises can compete head-to-head with other popular brand's vise on the market and outperform in a highly demanding manufacturing environment. Improving on industry standards, 690V vise has the tightest tolerance on key specifications such as clamping repeatability, bed height, parrallelism between bedway and base, and perpendicularity between jaw plate and bedway and improvement to prevent jaw lifting on movable jaws. 690V is designed and manufactured to be the ultimate vise at an affordable price and back by lifetime limited warranty.
Product Features Micron Lapping

A gang of vise body gone through time consuming grinding process with micron accuracy on a CNC grinder

Eye Inspection

Each vise body will be put under the microscope to filter out unsatisfying cast iron bodies before assembling

Smooth Movement

Semi-hardened bright finished lead screws with precision turned threads to give them a solid & smooth feel when turning the vise handle

Minimum Jaw Lift

Every machinist is afraid of the term "jaw lift" when associated with a vise. The 690X offers key improvements to prevent jaw lifting by using a 45 degree wedge and a pivoting ground finished steel hemisphere in a milled pocket to hold down the movable jaw. This results a minimal amount of jaw lift applying under pressure when comparing to other highly regarded go-to branded vises.

8.897" Opening Capacity

8.897" Opening capacity allows more clamping in a small footprint.

Hardened Vise Bed / Jaw Plate

-Vise jaw plate threads and spacing meets the industry standards
- Bedways are flame hardened to 45 HRc and jaw plate hardened to 54 HRc
- Bed height and the distance between keyway and stationary jaw remains the same and meets the industry standards
- Bed height matched to 2.875" +/- 0.0005"
- Vises' bed parallel to base within 0.0005"
- Fixed Jaw perpendicular to bed within 0.0005"
- Fixed jaw parallel to vise's keyway within +/- 0.0005"

Brush Seal

A brush on both end of spindle nut to wipe off chips to improve & extend the lead screw life.

Large Chip Evacuation

2 large chip evacuation slots are strategically located on each side of the vise to allow a good flow of chips while at the same time not diminishing the vise’s body strength. The vise body is also reinforced with a thicker rib to support the pulling mechanism when clamping

Matching Bed Heights

When ordering multiple vises, the bed heights will be matched within .0001" at no additional cost (subject to inventory stock availability)

Warranty

Tegara vise comes with 10 year limited warranty against defects in material and workmanship for the life of the product or part. (The life of the product or part is defined as that point in time when such item no longer functions due to normal wear and tear). Failure to properly maintain and/or properly operate the product or part under normal conditions will void this warranty. This warranty does not cover any product or part that has been worn out, abused, heated, ground or otherwise modified, used for a purpose other than that for which it was intended, or used in a manner inconsistent with any instructions regarding its use.

What's Included

3/4" Hex Polish Handle
2 pc of 11/16" T-slot Keys
Chip Guard
Inspection Report

Part List 690V-20 690V-6 690V-14 O Ring Vise Nut and Brush Pair Jaw Plate - One Pair 690V-Key2 690V-Key1 690V-4 Vise Key 11/16" Vise Key 11/16" to 5/8" Vise Bearing Thrust Collar 690V-2-3-5 690V-16-17-18 690V-9 Main Screw + Collar + Collar Set Vise Handle Adjusting Screw 690V-10 690V-19 Spring Vise Chip Cover

All Available to Ship NOW! at Fixed Prices

SHIPPING: UPS Ground

Buyer paysACTUAL UPS shipping & insurance, and a $3.00 handling feefor this item to be shipped to all states within the continental United States. Hawaii, Alaska & and other United States Territories will ship via UPS BLUE. Canada will pay actual shipping costs plus duty fees via UPS.
We can combine other sales or store items to save on shipping. You may ask for freight cost before buying tools. Shipment will be made the same day as your payment is received and an UPS tracking number will be email to you. If your order is being shipped to an address outside of the United States, local consumer tax and/or customs duty , brokerage charges may apply and the package's recipient may need to pay these to clear customs.

PAYMENT:

We accept VISA, MasterCard and E-Check on PayPal.com
Illinois resident adds 8% sales tax.

RETURNS:

If the item stated as brand new is found defective on arrival or incorrect item was shipped, buyer understands that the product will be repaired or replaced at seller's discretion, and be given a reasonable amount of time. Buyer is responsible for return shipping costs and insurance. Warranties are offered by the manufacturer and will be honored by the manufacturer. All shipping and handling fees will not be returned in any case.
