Tegara 6" 690X CNC, Manual Milling Machine Vise No Swivel Base New R[ For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Tegara 6" 690X CNC, Manual Milling Machine Vise No Swivel Base New R[:
$532.40

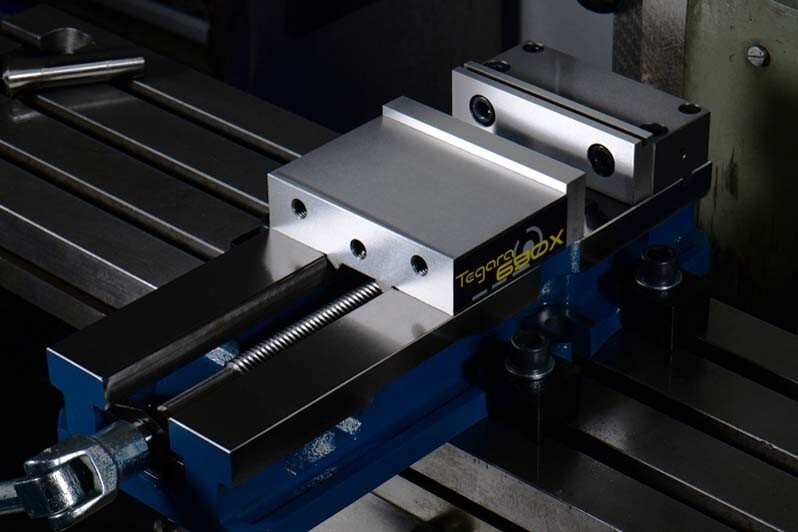

Tegara 6" 690X CNC, Manual Milling Machine Vise No Swivel Base NewProduct Description SKU 202-0990 MFG SKU # 690X VISE CATEGORY Milling Machine Vises BRAND Tegara VISE APPLICATION CNC Machine, Manual Machine JAW OPENING 9.10 JAW WIDTH 6 JAW DEPTH 1.75 OVERALL LENGTH 17 BED HEIGHT +/-0.0005" 2.875 WITH SWIVEL BASE No JAW PLATE THREAD SIZE 1/2"-13 JAW PLATE THREADS SPACING (INCH) 3.875 CLAMPING FORCE (LBS) 8000 Product Features

Get a Grip

Tegara’s new CNC Milling Vise has just put the squeeze on the competition. How’d they do it? Simple -- by making theirs hands-down a cut above the other ones. It just works better, is easier to use, and lasts longer. Period. And that’s what it’s all about.

So why is their new 690X vise able to stand up to the abuse of even the most demanding machine shops and still do what it’s supposed to do? Check it out:

- It's not just hard, it's 80,000 PSI stress relieved ductile-cast iron hard

- You can say goodbye to worrying about “Jaw Lift” because that threat is virtually gone. - 8,000 lbs. of clamping force guarantees what you clamp stays clamped. - All that the clamping force is pulled, not pushed, to reduce stress and minimize deflection - 2 large chip evacuation slots are perfectly located to get that stuff out of your way and keep it out - It does more with less, having a bigger capacity but a smaller footprint than previous generation vises

Big Picture

And those are just some of the reasons this vise rules. Big picture, all critical components have been precision turned to achieve smooth but rigid movement. You can feel the power right there in your hands. And feeling is believing. This thing is solid. So go ahead, put it through its paces. Come out swinging. Blast it with coolant. Lock it down and give it a go. Put it through the ringer and you find out that it was made to take a beating and emerge battle-tested and victorious. Tegara has set a new standard in precision machine vises with the 690X. And the best and most important thing to know about this CNC Milling Machine Vise? Two big words: IT...WORKS.

Micron Lapping

A gang of vise body gone through time consuming grinding process with micron accuracy on a CNC grinder

Eye Inspection

Each vise body will be put under the microscope to filter out unsatisfying cast iron bodies before assembling

Smooth Movement

Semi-hardened bright finished lead screws with precision turned threads to give them a solid & smooth feel when turning the vise handle

Pulling Mechanism

With a heavy duty thrust bearing pack located on the rear of the vise body, the clamping force is a pulled rather than pushed motion. This pulling mechanism would reduce stress and minimize deflection on the vise body when applying high clamping pressure

4 Bolts Stationary Jaw

Besides the integrated key on the stationary jaws, 4 additional solid cap screws are bolted down from the top to increase holding strength and prevent jaw lift. An recessed cavity is created on the back of the jaw for easier lifting

Minimum Jaw Lift

Every machinist is afraid of the term "jaw lift" when associated with a vise. The 690X offers key improvements to prevent jaw lifting by using a 45 degree wedge and a pivoting ground finished steel hemisphere in a milled pocket to hold down the movable jaw. This results a minimal amount of jaw lift applying under pressure when comparing to other highly regarded go-to branded vises

9.10" Opening Capacity

9.10" Opening capacity compared to the 8.89" from previous generation 690V vises, the 690X offers a larger capacity with a smaller foot print. The base of vise body is only 7.32" wide as opposed to the 8.75" from 690V series. With the 4 mounting thru holes with 4" spacing on the vise bed would allow more vises mounting side by side on a milling table

Hardened Vise Bed / Jaw Plate

-Vise jaw plate threads and spacing meets the industry standards
- Bedways are flame hardened to 45 HRc and jaw plate hardened to 54 HRc
- Bed height and the distance between keyway and stationary jaw remains the same and meets the industry standards
- Bed height matched to 2.875" +/- 0.0005"
- Vises' bed parallel to base within 0.0005"
- Fixed Jaw perpendicular to bed within 0.0005"
- Fixed jaw parallel to vise's keyway within +/- 0.0005"

Brush Seal

Continuing from the design feature in 690V vises, a brush on both end of spindle nut to wipe off chips to improve & extend the lead screw life

Large Chip Evacuation

2 large chip evacuation slots are strategically located on each side of the vise to allow a good flow of chips while at the same time not diminishing the vise’s body strength. The vise body is also reinforced with a thicker rib to support the pulling mechanism when clamping

Matching Bed Heights

When ordering multiple vises, the bed heights will be matched within .0001" at no additional cost (subject to inventory stock availability)

Warranty

Tegara vise comes with 10 year limited warranty against defects in material and workmanship for the life of the product or part. (The life of the product or part is defined as that point in time when such item no longer functions due to normal wear and tear). Failure to properly maintain and/or properly operate the product or part under normal conditions will void this warranty. This warranty does not cover any product or part that has been worn out, abused, heated, ground or otherwise modified, used for a purpose other than that for which it was intended, or used in a manner inconsistent with any instructions regarding its use

PartList

690X-2 690X-4

690X-9

Main Screw Vise Nut and Brush Pair 690X Lock Nut 690X-21 690X-6 O-Ring Fixed Jaw Product includes

3/4" Hex Polish Handle
2 pc of 11/16" T-slot Keys
Inspection report
Chip Guard

Related Products SKU#: 303-7201 SKU#: 515-0501 1/8" Steel Parallels 12.5" W x 8" H Polycarbonate Chip Guard for 5" & 6" Vise
