Tektronix TM502A AM503B with A6302 Current Probe and 500MHz P6139A:
$499.00

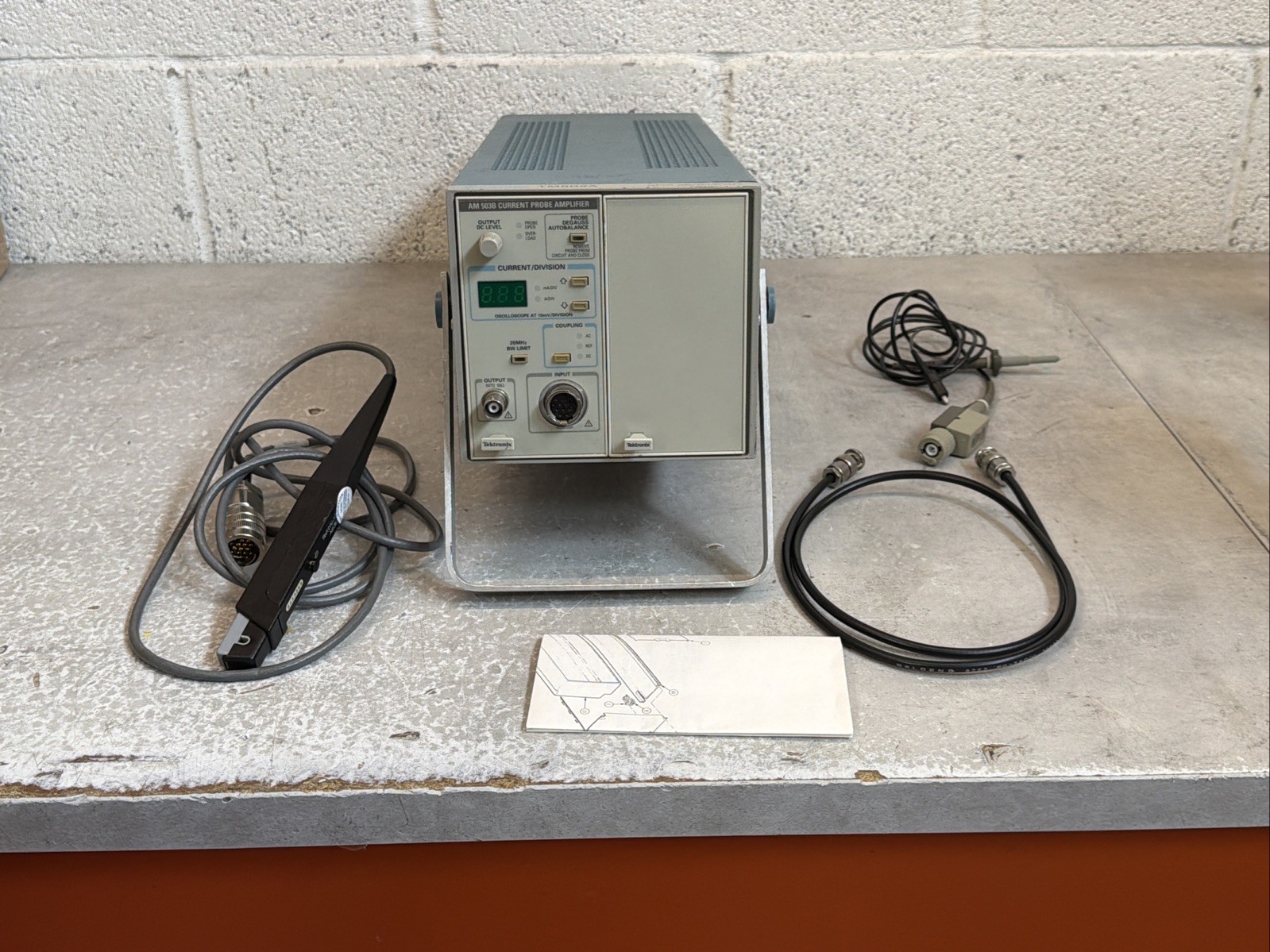

Up for sale is a Tektronix TM502A modular measurement system with AM503B current probe amplifier, A6302 current probe, and P6139A 500 MHz voltage probe. The system is in good overall physical condition and fully functional.
This is a professional-grade current and voltage measurement setup used in power electronics, RF testing, motor control, and laboratory R&D applications.
System Includes- Tektronix TM502A mainframe
- Tektronix AM503B Current Probe Amplifier module
- Tektronix A6302 Current Probe
- Tektronix P6139A 500 MHz Voltage Probe
- Power cable only
- Probe Type: Hall-effect + transformer current probe
- Bandwidth: DC to 50 MHz
- Current Range: 20 A continuous / 50 A peak
- Measurement Type: AC + DC current sensing
- Designed for high-speed power electronics and switching waveform analysis
- Bandwidth: 500 MHz
- Attenuation: 10X passive probe
- Ideal for high-speed digital and analog waveform measurement
Unit is in good overall physical condition and fully operational. Normal cosmetic wear may be present from prior use.
Included- TM502A Mainframe
- AM503B Plug-in Module
- A6302 Current Probe
- P6139A 500 MHz Probe
- Power cable
No additional accessories included.
Please verify compatibility with your test equipment before purchase.
Warranty: 30-Day Warranty.
