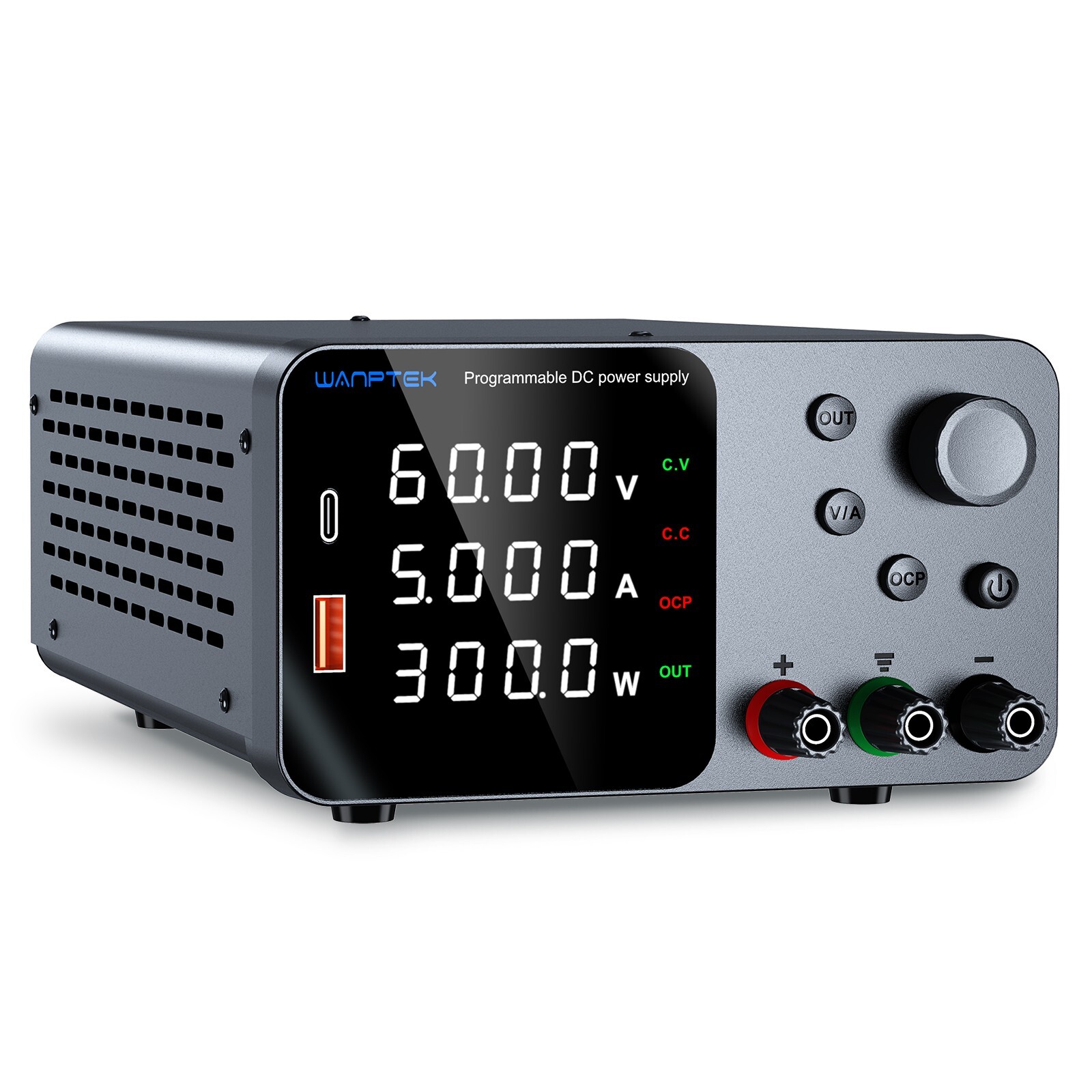

WANPTEK Adjustable DC 0-60V 0-5A Lab Power Supply Variable Bench Switching:
$59.99

TPS series desktop DC stabilized power supply

Product Description

The TPS series products are high-precision DC stabilized power supplies with three windows and four digits display, which can simultaneously display voltage, current, and power. The product is widely used in mobile phone repair, computer repair, battery charging, school teaching, and production line use. The use of coding potentiometers allows for continuous adjustment of output voltage and current between 0 and nominal values, and pre-set values can be displayed for easy use and adjustment. This device has USB-A/Type-C fast charging function and supports multiple fast charging protocols. Equipped with perfect OVP and OCP short-circuit protection circuits, the stability and ripple coefficient of the power supply are very good. It has small size, light weight, beautiful design, convenient operation, and can work for a long time at full load, which is deeply loved by users.

Product Features

Switch between voltage and current options, adjust the value by encoding the potentiometer, and the set value can be displayed in advance.

OCP overload protection function, short circuit stop output, OUT output switch.

USB-A/Type-C fast charging function, supporting multiple fast charging protocols

Small size, light weight, and sufficient power.

Automatic switching of constant voltage and current.

Three sets of LED four digit displays for voltage, current, and power, with high accuracy.

Temperature controlled fan for heat dissipation, low noise, and long lifespan.

Application areas

1. Production line testing.

2. Repair mobile phones, computers, and appliances.

3. Product aging and electroplating.

4. Battery charging.

5. Laboratory, scientific research, and teaching.

6. All other occasions that require a DC stabilized power supply.

Product parameter table

Model

TPS605

Output Power

300W

Output voltage

0~60V

Output current

0~5A

Auxiliary functions

USB-A/Type-C fast charging, supporting various fast charging protocols

Protection mode

Current limiting protection / short circuit alarm stop output, self recovery

Working environment

Input style=\"text-align: left; vertical-align: middle; margin: 0pt 0pt 0.0001pt; font-family: Calibri; font-size: 10.5pt;\">Working temperature：0℃～40℃;relative humidity:<80%RH

Storage temperature：-10℃～70℃;relative humidity:<70%RH

Constant voltage CV

Voltage stability：0.1%±3mV

Load stability：0.2%±3mV

Ripple voltage：≤0.5%Vp-p

0 to rated voltage continuously adjustable

Constant current CC

Current stability：0.1%±3mA

Load stability：0.2%±3mA

Ripple current：≤0.5%Vp-p

Recovery time：≤500μS

Temperature coefficient：≤100ppm/℃
