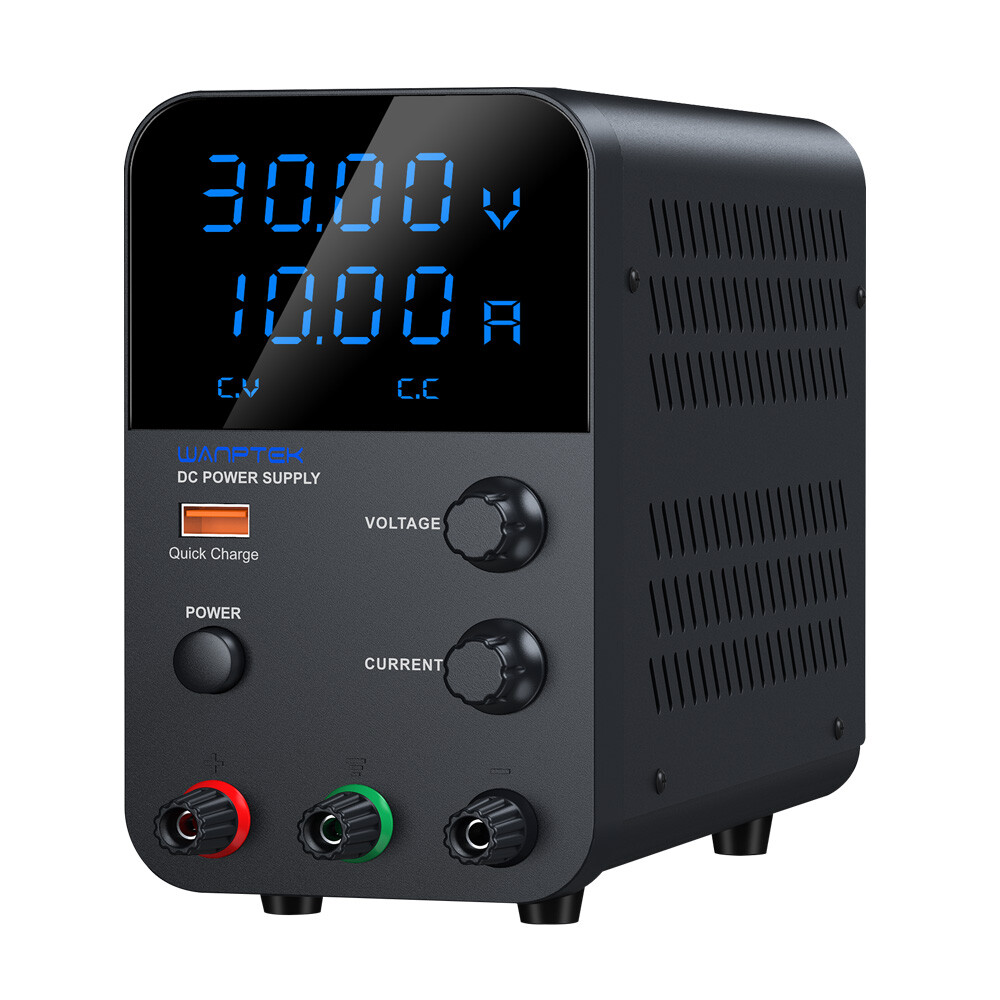

Wanptek Adjustable DC 0-30V 0-10A 3010 Lab Power Supply Variable Bench Switching For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Wanptek Adjustable DC 0-30V 0-10A 3010 Lab Power Supply Variable Bench Switching:
$52.99

GPS series DC stabilized power supply

Product Description

GPS series is a double-window blue four-digit digital display switching DC regulated power supply, which can display voltage and current at the same time. The products are widely used in cell phone repair, computer repair, battery charging, school teaching and production line use. The output voltage and output current can be continuously adjusted between 0 and nominal value by using coded potentiometers, and the set values can be displayed in advance, which is convenient to use and adjust. This machine has USB fast charging function and supports many kinds of fast charging protocols. With perfect protection circuit, the stability and ripple factor of the power supply are very good. Its small size, light weight, beautiful design, easy to operate, full load can work for a long time, loved by users.

Product Features

The coding potentiometer sets the voltage and current, and the set values can be displayed in advance.

Overload protection, over temperature protection.

The USB fast charging function supports multiple fast charging protocols.

Small size, light weight, and sufficient power.

Automatic switching of constant voltage and current.

Voltage, current, two sets of LED four digit display with high accuracy.

Temperature controlled fan for heat dissipation, low noise, and long lifespan.

Application areas

1. Production line testing.

2. Repair mobile phones, computers, and appliances.

3. Product aging and electroplating.

4. Battery charging.

5. Laboratory, scientific research, and teaching.

6. All other occasions that require a DC stabilized power supply.

Product List

ModelGPS3010DOutput Power300WOutput voltage0~30VOutput current0~10AAuxiliary functionsUSB fast charging interfaceProtection modeOverload protection, over temperature protection.working environmentInput temperature：0℃～40℃;relative humidity:<80%RHStorage temperature：-10℃～70℃;relative humidity:<70%RHConstant voltage CVVoltage stability：0.5%±3mVLoad stability：0.5%±3mVRipple voltage：≤0.5%Vp-p0 to rated voltage continuously adjustableconstant current CCCurrent stability：0.5%±3mALoad stability：0.5%±3mARipple current：≤0.5%Vp-pRecovery time：≤500μSTemperature coefficient：≤100ppm/℃0 to rated current continuously adjustabledisplayTwo sets of 0.56-inch blue light four digit digital tubes for displayDisplay accuracy：0.5%±digitsDisplay resolution：voltage 0.01V，current 0.001ASize and weightProduct size：190(L)x90(W)x145(H)mmPacking size：265(L)x135(W)x195(H)mmNet weight：1.15KgGross weight：1.5Kg8sets/piece, box size:550*275*405mm,box weight:12.5kgRandom attachmentpower cordx1 (EU,US,UK, ...)Instructionsx1,Test linex1,Machine colorBlack
