Watlow F4T -2 Channel Heater Controller- F4T1A1BAA1C2AAA-Open Box w/Flex Modules For Sale

Watlow F4T -2 Channel Heater Controller- F4T1A1BAA1C2AAA-Open Box w/Flex Modules
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

Watlow F4T -2 Channel Heater Controller- F4T1A1BAA1C2AAA-Open Box w/Flex Modules:
$750.00

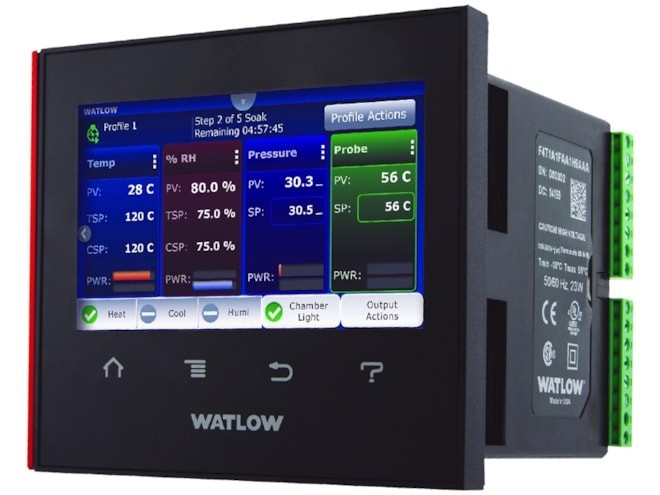

Used Watlow F4T Heater Controller - Model #F4T1A1AAA1A4AAA

Includes the F4T (Model #F4T1A1AAA1A4AAA), a universal input module (FMHA-RAAA-AFAA), and a solid state relay module (FMHA-KAAA-AFAA)


This was purchased for a project, configured as a 2 channel controller, and then was never actually used and pulled when the project was cancelled.


Be sure to check the part number to ensure the controller is the correct configuration for your application.


Features and Benefits


4.3-inch, color touch panel with high-resolution, graphical user-interface

• Shortens learning curve and reduces operator errors

• Allows channels, profiles, alarms, inputs and outputs to be personalized with user defined names


Temperature PID, data logger, trend chart, over/under-temperature limit, power switching, math, logic, timers and counters combined into an integrated system

• Lowers ownership costs

• Eliminates the need for separate discrete components

• Reduces complexity

• Simplifies design, ordering and installation • Saves money


Robust algorithms for temperature, cascade, altitude, humidity and compressor

• Improves process control

• Offers one to four channels of control

• Provides multiple PID sets

• Enables TRU-TUNE®+ adaptive control algorithm

• Offers 40 ramp and soak profiles with real-time clock and battery backup


Email and text alerts

• Notifies users of an event that has occurred such as a specific profile or step within a profile, alarm condition, limit condition or analog input error COMPOSER® graphical configuration PC software

• Speeds up and simplifies commissioning

• Archives and documents controller setup

• Connects with controller easily via Ethernet Batch processing with bar code data entry

• Easily collects and manages data records

• Inputs information from bar code scan for fast and easy data entry

• Offers foolproof processing via smart profile to part linkage

• Provides data security through password and data log encrypted file options

• Improves manufacturing robustness via reminder screens ensuring all data is entered during processing

• Helps ensure compliance with growing regulations and minimizes warranty exposure

• Eliminates part processing skips or walk arounds due to improved quality control

• Produces formatted data record report for easy receipt or record management uses


Many communications options available including EtherNet/IP™, Modbus® TCP (Ethernet) SCPI and EIA-232/485 Modbus® RTU

• Offers two USB host ports and one device port

• Simplifies file transfers • Connects easily Modular design

• Adapts quickly to evolving requirements

• Offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility

• Features scalable and modular firmware functions

• Delivers scalable input/output quantities from 1 to 36 SERIES F4S/F4D/F4P backward compatible

• Provides easy retrofit with minimum pain and disruption

• Ensures proper fit in existing SERIES F4 panel cutout

Key Features and Options


• 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability

• 40 profiles for ramp and soak

• EtherNet/IP™

• Ethernet Over Modbus® TCP connectivity

• Multiple high-speed USB host ports

• Over/under-temperature limits for safety shutdown

• Universal, thermistor and ac current measurement inputs

• Inputs and outputs expandable from 1 to 36

• SENSOR GUARD prevents unplanned process shutdowns and product loss by switching to a backup sensor if the primary sensor fails

• High current outputs for up to 10A heaters or other loads

• Programmable timers, counters, math and logic

• Temperature, cascade, altitude, relative humidity, compressor algorithms and Vaisala® humidity compensation

• Sequencer start-up and control

• Retransmit and remote set point

• USB configuration port

• Configuration settings can be stored and recalled

• Removable modules and connectors

• Front-panel mount and flush mounting options

• Right angle and front-screw terminal options

• UL® listed, CSA, CE, RoHS, W.E.E.E., FM

• Multi-language options

• English, German, French, Italian, Spanish, Japanese, Korean and Chinese

• USB wired or wireless mouse user interface

• Use in hazardous location, dirty environments or applications with gloves


Common Specifications


Line Voltage/Power

• Data retention upon power failure via nonvolatile memory


Functional Operating Range

• Type J: -346 to 2192°F (-210 to 1200°C)

• Type K: -454 to 2500°F (-270 to 1371°C)

• Type T: -454 to 750°F (-270 to 400°C)

• Type E: -454 to 1832°F (-270 to 1000°C)

• Type N: -454 to 2372°F (-270 to 1300°C)

• Type C: 32 to 4200°F (0 to 2315°C)

• Type D: 32 to 4200°F (0 to 2315°C)

• Type F: 32 to 2449°F (0 to 1343°C)

• Type R: -58 to 3214°F (-50 to 1767°C)

• Type S: -58 to 3214°F (-50 to 1767°C)

• Type B: 32 to 3300°F (0 to 1816°C)

• RTD (DIN): -328 to 1472°F (-200 to 800°C)

• Process: -1999 to 9999 units


Calibration Accuracy

• Calibration accuracy and sensor conformity: ±0.1% of span, ±1°C at the calibrated ambient temperature and rated line voltage

• Types R, S, B: ±0.2%

• Type T below -50°C: ±0.2%

• Calibration ambient temperature at 77°F ±5°F (25°C ±3°C)

• Accuracy span: 1000°F (540°C) min.

• Temperature stability: Typical ±0.1°F/°F (±0.1°C/°C) rise in ambient max.


Configuration Diagnostics

• Indicates if modules present match the expected configuration settings


USB Host Port

• Total of 2 available

• Version: USB 2.0 hi-speed

• Connector: USB Type A, high-retention

• Flash drive must be FAT32 file system

• Max. current 0.5A/port


System Configuration Requirements

• F4T has 6 slots for flex modules (FM)

• EIA-232/485 Modbus® RTU flex module, if used, must occupy slot 6 location

• A maximum of two 10A SSR FM modules can be used in the F4T and each will require space for 2 slots. Valid in slots 1, 2, 4 or 5


Wiring Termination—Touch-Safe Terminals

• Right-angle and front-screw terminal blocks for input, output and power supply connections

• Input, output and power terminals: touch safe, removable, 12 to 30 AWG


F4T Base Specifications


Line Voltage/Power

• High voltage option: 100 to 240VAC +10/-15%, 50/60Hz ±5%

• Low voltage option: 24 to 28VAC/VDC+10/-15%, 50/60Hz ±5%

• Power consumption: 23 W, 54VA


Environment

• NEMA 4X/IP65 front panel mount configuration only

• Operating temperature: 0 to 122°F (-18 to 50°C)

• Storage temperature: -40 to 185°F (-40 to 85°C)

• Relative humidity: 0 to 90%, non-condensing


User Interface

• 4.3 inch TFT PCAP color graphic touch screen

• LED backlife >50K hours

• 4 keys: Home, Main Menu, Back, Help

• Multiple languages

• English, German, French, Italian, Spanish, Japanese, Korean and Chinese

• USB wired or wireless mouse functionality

• Right click for 4 keys: Home, Main Menu, Back, Help


Control Loops

• 1 to 4 PID or ON-OFF control loops

• 0 to 6 Limit loops

• User-selectable action: heat, cool or heat/cool • Auto-tune with TRU-TUNE+ adaptive control


Control Loops and Over-temperature Limits

• Input sampling: 10Hz • Output update: 10Hz


Communications

• Modbus® TCP (Ethernet)

• Isolated communications


Profile Ramp and Soak Option

• Profile engine affects 1 to 4 loops in sync

• 40 profiles with 50 steps per profile
