Watlow F4T -4 Channel Heater Controller- F4T1A1BAA1C2AAA-Open Box w/Flex Modules:
$825.00

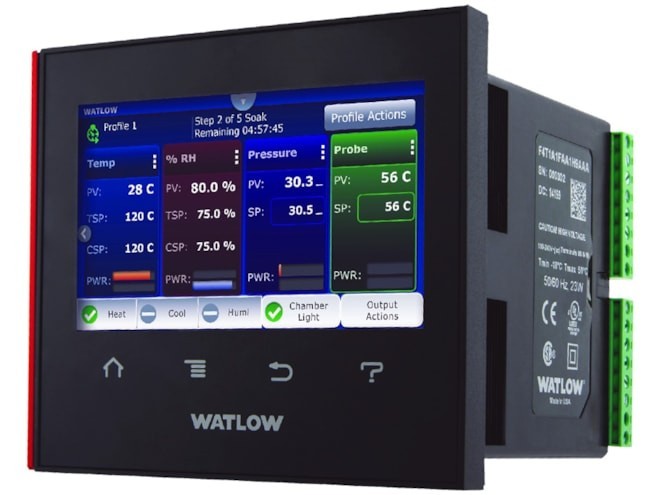

Used Watlow F4T Heater Controller - Model #F4T1A1BAA1C2AAA


Includes the F4T (Model #F4T1A1BAA1C2AAA), a universal input module (FMHA-RAAA-AFAA), and 2 10A solid state relay module (FMHA-KAAA-AFAA)


The controller is configured with 4 control loops, and is capable of supplying 4 channels with 10A of current per channel.


Be sure to check the part number to ensure the controller is the correct configuration for your application.


Features and Benefits


4.3-inch, color touch panel with high-resolution, graphical user-interface

• Shortens learning curve and reduces operator errors

• Allows channels, profiles, alarms, inputs and outputs to be personalized with user defined names


Temperature PID, data logger, trend chart, over/under-temperature limit, power switching, math, logic, timers and counters combined into an integrated system

• Lowers ownership costs

• Eliminates the need for separate discrete components

• Reduces complexity

• Simplifies design, ordering and installation • Saves money


Robust algorithms for temperature, cascade, altitude, humidity and compressor

• Improves process control

• Offers one to four channels of control

• Provides multiple PID sets

• Enables TRU-TUNE®+ adaptive control algorithm

• Offers 40 ramp and soak profiles with real-time clock and battery backup


Email and text alerts

• Notifies users of an event that has occurred such as a specific profile or step within a profile, alarm condition, limit condition or analog input error COMPOSER® graphical configuration PC software

• Speeds up and simplifies commissioning

• Archives and documents controller setup

• Connects with controller easily via Ethernet Batch processing with bar code data entry

• Easily collects and manages data records

• Inputs information from bar code scan for fast and easy data entry

• Offers foolproof processing via smart profile to part linkage

• Provides data security through password and data log encrypted file options

• Improves manufacturing robustness via reminder screens ensuring all data is entered during processing

• Helps ensure compliance with growing regulations and minimizes warranty exposure

• Eliminates part processing skips or walk arounds due to improved quality control

• Produces formatted data record report for easy receipt or record management uses


Many communications options available including EtherNet/IP™, Modbus® TCP (Ethernet) SCPI and EIA-232/485 Modbus® RTU

• Offers two USB host ports and one device port

• Simplifies file transfers • Connects easily Modular design

• Adapts quickly to evolving requirements

• Offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility

• Features scalable and modular firmware functions

• Delivers scalable input/output quantities from 1 to 36 SERIES F4S/F4D/F4P backward compatible

• Provides easy retrofit with minimum pain and disruption

• Ensures proper fit in existing SERIES F4 panel cutout

Key Features and Options


• 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability

• 40 profiles for ramp and soak

• EtherNet/IP™

• Ethernet Over Modbus® TCP connectivity

• Multiple high-speed USB host ports

• Over/under-temperature limits for safety shutdown

• Universal, thermistor and ac current measurement inputs

• Inputs and outputs expandable from 1 to 36

• SENSOR GUARD prevents unplanned process shutdowns and product loss by switching to a backup sensor if the primary sensor fails

• High current outputs for up to 10A heaters or other loads

• Programmable timers, counters, math and logic

• Temperature, cascade, altitude, relative humidity, compressor algorithms and Vaisala® humidity compensation

• Sequencer start-up and control

• Retransmit and remote set point

• USB configuration port

• Configuration settings can be stored and recalled

• Removable modules and connectors

• Front-panel mount and flush mounting options

• Right angle and front-screw terminal options

• UL® listed, CSA, CE, RoHS, W.E.E.E., FM

• Multi-language options

• English, German, French, Italian, Spanish, Japanese, Korean and Chinese

• USB wired or wireless mouse user interface

• Use in hazardous location, dirty environments or applications with gloves


Common Specifications


Line Voltage/Power

• Data retention upon power failure via nonvolatile memory


Functional Operating Range

• Type J: -346 to 2192°F (-210 to 1200°C)

• Type K: -454 to 2500°F (-270 to 1371°C)

• Type T: -454 to 750°F (-270 to 400°C)

• Type E: -454 to 1832°F (-270 to 1000°C)

• Type N: -454 to 2372°F (-270 to 1300°C)

• Type C: 32 to 4200°F (0 to 2315°C)

• Type D: 32 to 4200°F (0 to 2315°C)

• Type F: 32 to 2449°F (0 to 1343°C)

• Type R: -58 to 3214°F (-50 to 1767°C)

• Type S: -58 to 3214°F (-50 to 1767°C)

• Type B: 32 to 3300°F (0 to 1816°C)

• RTD (DIN): -328 to 1472°F (-200 to 800°C)

• Process: -1999 to 9999 units


Calibration Accuracy

• Calibration accuracy and sensor conformity: ±0.1% of span, ±1°C at the calibrated ambient temperature and rated line voltage

• Types R, S, B: ±0.2%

• Type T below -50°C: ±0.2%

• Calibration ambient temperature at 77°F ±5°F (25°C ±3°C)

• Accuracy span: 1000°F (540°C) min.

• Temperature stability: Typical ±0.1°F/°F (±0.1°C/°C) rise in ambient max.


Configuration Diagnostics

• Indicates if modules present match the expected configuration settings


USB Host Port

• Total of 2 available

• Version: USB 2.0 hi-speed

• Connector: USB Type A, high-retention

• Flash drive must be FAT32 file system

• Max. current 0.5A/port


System Configuration Requirements

• F4T has 6 slots for flex modules (FM)

• EIA-232/485 Modbus® RTU flex module, if used, must occupy slot 6 location

• A maximum of two 10A SSR FM modules can be used in the F4T and each will require space for 2 slots. Valid in slots 1, 2, 4 or 5


Wiring Termination—Touch-Safe Terminals

• Right-angle and front-screw terminal blocks for input, output and power supply connections

• Input, output and power terminals: touch safe, removable, 12 to 30 AWG


F4T Base Specifications


Line Voltage/Power

• High voltage option: 100 to 240VAC +10/-15%, 50/60Hz ±5%

• Low voltage option: 24 to 28VAC/VDC+10/-15%, 50/60Hz ±5%

• Power consumption: 23 W, 54VA


Environment

• NEMA 4X/IP65 front panel mount configuration only

• Operating temperature: 0 to 122°F (-18 to 50°C)

• Storage temperature: -40 to 185°F (-40 to 85°C)

• Relative humidity: 0 to 90%, non-condensing


User Interface

• 4.3 inch TFT PCAP color graphic touch screen

• LED backlife >50K hours

• 4 keys: Home, Main Menu, Back, Help

• Multiple languages

• English, German, French, Italian, Spanish, Japanese, Korean and Chinese

• USB wired or wireless mouse functionality

• Right click for 4 keys: Home, Main Menu, Back, Help


Control Loops

• 1 to 4 PID or ON-OFF control loops

• 0 to 6 Limit loops

• User-selectable action: heat, cool or heat/cool • Auto-tune with TRU-TUNE+ adaptive control


Control Loops and Over-temperature Limits

• Input sampling: 10Hz • Output update: 10Hz


Communications

• Modbus® TCP (Ethernet)

• Isolated communications


Profile Ramp and Soak Option

• Profile engine affects 1 to 4 loops in sync

• 40 profiles with 50 steps per profile
